Magnetic Linear Actuators
High Breakaway Force Magnetic Actuators for Safety-Critical Applications
Tolomatic magnetic linear actuators, including the MG cylinder and MGS slide-style magnetic linear actuator, provide reliable pneumatic linear motion with high breakaway force for applications where unintended movement must be minimized. Their high breakaway points make these magnetic actuators well suited for safety-conscious automation, positioning, and material-handling applications.
Available in all-stainless-steel construction, MG and MGS magnetic linear actuators can also be used in washdown environments and clean room applications where corrosion resistance and easy-to-clean equipment are important.
Product Lineup

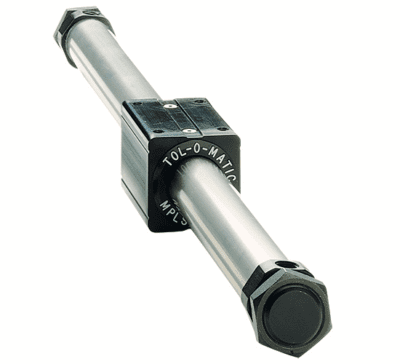

Magnetic Linear Cylinder for Flexible Mounting and Contaminant Protection
The Tolomatic MG magnetic linear cylinder provides reliable rodless pneumatic linear motion for applications where environmental conditions, mounting flexibility, and contamination control are important. Its magnetic coupling eliminates a mechanical connection between the carrier and piston, allowing the mounting block to rotate easily for flexible installation and positioning.
The fully enclosed actuator body helps prevent contaminants from entering the actuator, while the field-repairable design can simplify maintenance and reduce downtime. Three magnetic coupling strengths are available for loads up to 100 lbs (45.4 kg).
- Three magnetic coupling strengths for loads up to 100 lbs (45.4 kg)
- No mechanical carrier-to-piston connection for flexible mounting
- Rotating mounting block simplifies installation and positioning
- Fully enclosed actuator body helps prevent contaminant intrusion
- Field-repairable design helps minimize maintenance downtime
- Rodless magnetic linear actuator for space-conscious pneumatic automation
- Suitable for applications with environmental and contamination concerns
For more information about this product…
MG Bore Size
MG Maximum Stroke
MG Maximum Force
MG Magnetic Strength

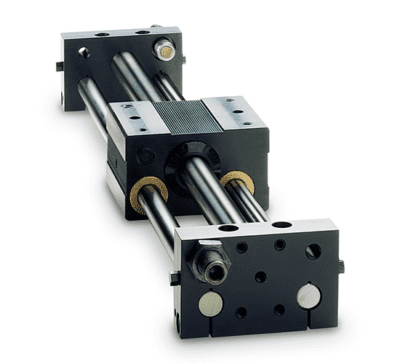

Low-Profile Magnetic Linear Slide for Rigid, Flexible Motion
The Tolomatic MGS magnetic linear slide combines a low-profile design with exceptional rigidity for stable pneumatic linear motion in space-constrained automation applications. Like the MG magnetic cylinder, the MGS uses magnetic coupling without a mechanical piston connection, allowing the mounting block to rotate for flexible installation and positioning.
Multi-ported block heads provide flexible air connections, while selectable bearing options support different motion and load requirements. End-of-stroke deceleration adjustment helps control actuator movement for smoother stopping.
- Magnetic coupling forces up to 70 lbs (31.8 kg)
- No mechanical piston connection for flexible mounting
- Rotating mounting block provides installation flexibility
- Low-profile, rigid design for space-constrained applications
- Precision linear ball or sintered bronze bearings
- Multi-ported block heads for flexible pneumatic connections
- Adjustable end-of-stroke deceleration
- Suitable for pneumatic automation, positioning, and material handling
For more information about this product…
MGS Bore Size
MGS Maximum Stroke
MGS Maximum Force
MGS Maximum Load
