Vacuum Generators
VacMotion vacuum generators provide efficient vacuum power for a variety of industrial applications, offering fast response times and reliable performance. They come in multiple styles, including single-stage, multi-stage, and compact models, designed to meet the specific needs of different systems. These vacuum generators are ideal for tasks such as pick-and-place operations and other automated processes that require strong, consistent vacuum creation.
Product Lineup
Mini Vacuum Generator

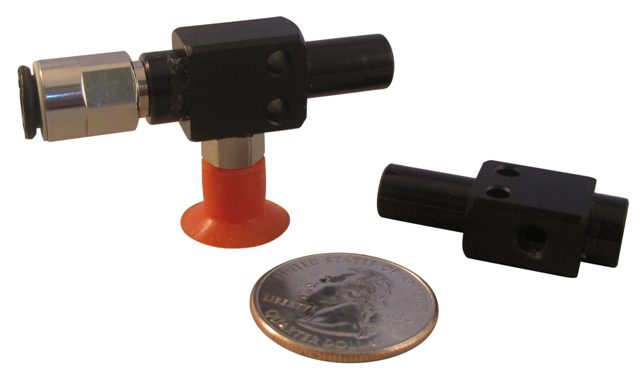

SSV-2.5 Mini Vacuum Generator
- Vacuum Flow(SCFM): 0.1
- Vacuum Port: M5
- Supply Port: M5
- Air Consumption: .25
- Max Vac -inHg: 25
- Weight(lbs): .0160

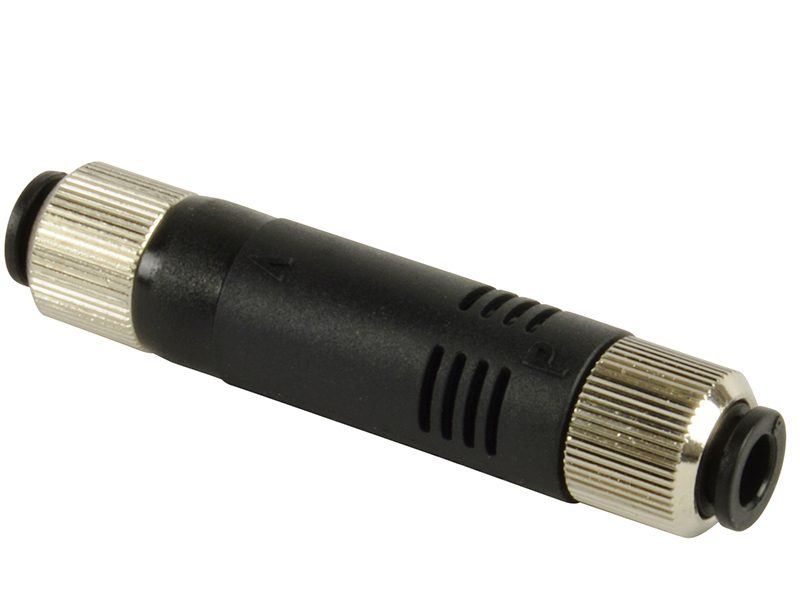

Compact Inline Vacuum Generator With Silencer
SSV-14-M5 Compact Inline Vacuum Generator With Silencer
- Vacuum Flow(SCFM): 0.5
- Vacuum Port: M5
- Supply Port: M5
- Air Consumption: .50
- Max Vac -inHg: 26
- Weight(lbs): .0575
SSV-21-G18
- Vacuum Flow(SCFM): 0.7
- Vacuum Port: G1/8″
- Supply Port: G1/8″
- Air Consumption: .74
- Max Vac -inHg: 26
- Weight(lbs): .5015

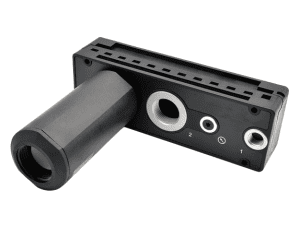

Cartridge Style Multi-Stage Vacuum Generator
MSVG-68M Cartridge Style Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 2.4
- Vacuum Port: G3/8″
- Supply Port: 6mm tube
- Air Consumption: .95
- Max Vac -inHg: 22
- Weight(lbs): .1460
MSVG-68H Cartridge Style Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 2.3
- Vacuum Port: G3/8″
- Supply Port: 6mm tube
- Air Consumption: 1.06
- Max Vac -inHg: 27.5
- Weight(lbs): .1460
MSVG-68HL Cartridge Style Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 2.2
- Vacuum Port: G3/8″
- Supply Port: 6mm tube
- Air Consumption: 1.02
- Max Vac -inHg: 26.5
- Weight(lbs): .1460
MSVG-360M Cartridge Style Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 13.8
- Vacuum Port: G1/2″
- Supply Port: 8mm tube
- Air Consumption: 4.59
- Max Vac -inHg: 22
- Weight(lbs): .4955
MSVG-372H Cartridge Style Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 12.7
- Vacuum Port: G1/2″
- Supply Port: 8mm tube
- Air Consumption: 4.41
- Max Vac -inHg: 28
- Weight(lbs): .4955
Vacuum Generator with Silencer

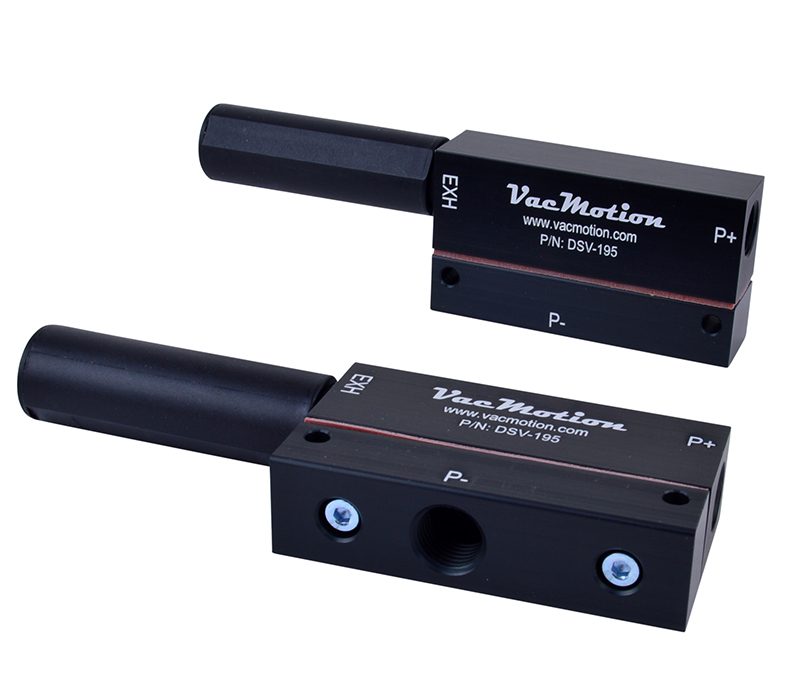

DSV-195 Vacuum Generator with Silencer
- Vacuum Flow(SCFM): 1.9
- Vacuum Port: G1/4″
- Supply Port: G1/4″
- Air Consumption: .99
- Max Vac -inHg: 26.4
- Weight(lbs): .3375
DSV-255 Vacuum Generator with Silencer
- Vacuum Flow(SCFM): 2.6
- Vacuum Port: G1/4″
- Supply Port: G1/4″
- Air Consumption: 1.77
- Max Vac -inHg: 26.5
- Weight(lbs): .3375
DSV-325 Vacuum Generator with Silencer
- Vacuum Flow(SCFM): 3.3
- Vacuum Port: G1/4″
- Supply Port: G1/4″
- Air Consumption: 1.77
- Max Vac -inHg: 26.0
- Weight(lbs): .3375
DSV-415 Vacuum Generator with Silencer
- Vacuum Flow(SCFM): 4.1
- Vacuum Port: G1/4″
- Supply Port: G1/4″
- Air Consumption: 2.93
- Max Vac -inHg:
- Weight(lbs): .3360
DSV-470 Vacuum Generator with Silencer
- Vacuum Flow(SCFM): 4.7
- Vacuum Port: G1/4″
- Supply Port: G1/4″
- Air Consumption: 3.99
- Max Vac -inHg: 26.8
- Weight(lbs): .3355

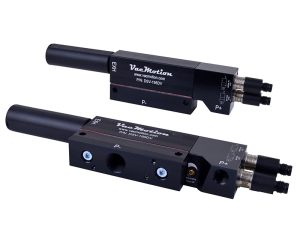

Vacuum Generator with Valve Control, Blow-Off, and Silencer
DSV-195-DV Vacuum Generator with Valve Control, Blow-Off, and Silencer
- Vacuum Flow(SCFM): 1.9
- Vacuum Port: G1/4″
- Supply Port: G1/4″
- Air Consumption: 0.99
- Max Vac -inHg: 26.4
- Weight(lbs): .4965
DSV-255-DV Vacuum Generator with Valve Control, Blow-Off, and Silencer
- Vacuum Flow(SCFM): 2.6
- Vacuum Port: G1/4″
- Supply Port: G1/4″
- Air Consumption: 1.77
- Max Vac -inHg: 26.5
DSV-325-DV Vacuum Generator with Valve Control, Blow-Off, and Silencer
- Vacuum Flow(SCFM): 3.3
- Vacuum Port: G1/4″
- Supply Port: G1/4″
- Air Consumption: 1.77
- Max Vac -inHg: 26.0
- Weight(lbs): .4980
DSV-415-DV Vacuum Generator with Valve Control, Blow-Off, and Silencer
- Vacuum Flow(SCFM): 4.1
- Vacuum Port: G1/4″
- Supply Port: G1/4″
- Air Consumption: 2.93
- Max Vac -inHg: 25.6
- Weight(lbs): .4960
DSV-470-DV Vacuum Generator with Valve Control, Blow-Off, and Silencer
- Vacuum Flow(SCFM): 4.7
- Vacuum Port: G1/4″
- Supply Port: G1/4″
- Air Consumption: 3.99
- Max Vac -inHg: 26.8
- Weight(lbs): .4950
Single Stage Vacuum Generator with Silencer

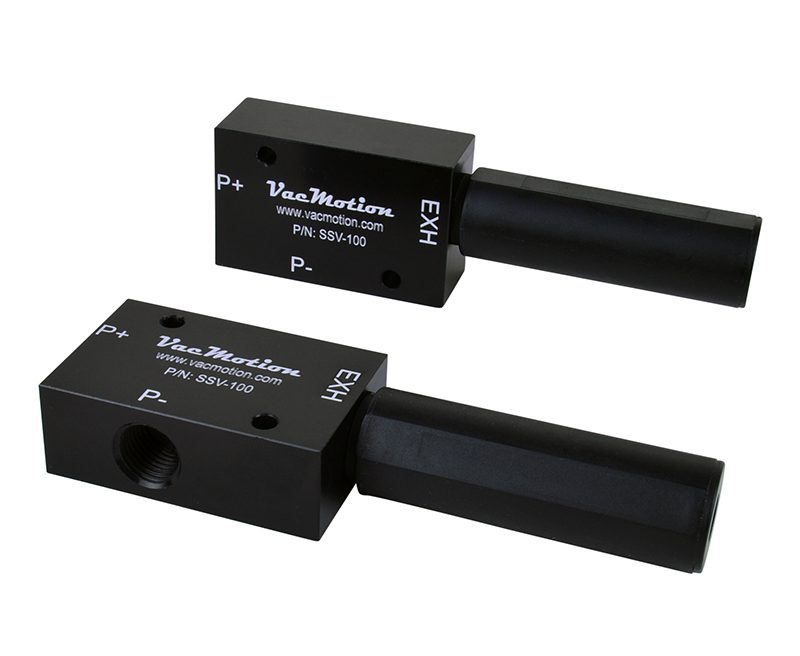

SSV-100 Single Stage Vacuum Generator with Silencer
- Vacuum Flow(SCFM): 1.0
- Vacuum Port: G 1/4″
- Supply Port: G1/4″
- Air Consumption: 1.6
- Max Vac -inHg: 26.5
- Weight(lbs): .242
SSV-110 Single Stage Vacuum Generator with Silencer
- Vacuum Flow(SCFM): 1.1
- Vacuum Port: G 1/4″
- Supply Port: G1/4″
- Air Consumption: 1.6
- Max Vac -inHg: 26
- Weight(lbs): .243
SSV-150 Single Stage Vacuum Generator with Silencer
- Vacuum Flow(SCFM): 1.5
- Vacuum Port: G 1/4″
- Supply Port: G1/4″
- Air Consumption: 3.2
- Max Vac -inHg: 27
- Weight(lbs): .242
SSV-220 Single Stage Vacuum Generator with Silencer
- Vacuum Flow(SCFM): 2.2
- Vacuum Port: G 1/2″
- Supply Port: G 3/8″
- Air Consumption: 5.9
- Max Vac -inHg: 27
- Weight(lbs): .658
SSV-500 Single Stage Vacuum Generator with Silencer
- Vacuum Flow(SCFM): 5.2
- Vacuum Port: G 1/2″
- Supply Port: G 3/8″
- Air Consumption: 6.0
- Max Vac -inHg: 27
- Weight(lbs): .656
SSV-750 Single Stage Vacuum Generator with Silencer
- Vacuum Flow(SCFM): 7.5
- Vacuum Port: G 1/2″
- Supply Port: G 3/8″
- Air Consumption: 12.9
- Max Vac -inHg: 27.5
- Weight(lbs): .8935
SSV-825 Single Stage Vacuum Generator with Silencer
- Vacuum Flow(SCFM): 8.2
- Vacuum Port: G 1/2″
- Supply Port: G 3/8″
- Air Consumption: 12.8
- Max Vac -inHg: 26.0
- Weight(lbs): .8935
SSV-100-N Single Stage Vacuum Generator with Silencer
- Vacuum Flow(SCFM): 1.0
- Vacuum Port: 1/4″ NPT
- Supply Port: 1/4″ NPT
- Air Consumption: 1.6
- Max Vac -inHg”: 26.5
- Weight(lbs)”: .242
SSV-110-N Single Stage Vacuum Generator with Silencer
- Vacuum Flow(SCFM): 1.1
- Vacuum Port: 1/4″ NPT
- Supply Port: 1/4″ NPT
- Air Consumption: 1.6
- Max Vac -inHg”: 26
- Weight(lbs)”: .243
SSV-150-N Single Stage Vacuum Generator with Silencer
- Vacuum Flow(SCFM): 1.5
- Vacuum Port: 1/4″ NPT
- Supply Port: 1/4″ NPT
- Air Consumption: 3.2
- Max Vac -inHg”: 2
- Weight(lbs)”: .242
SSV-220-N Single Stage Vacuum Generator with Silencer
- Vacuum Flow(SCFM): 2.2
- Vacuum Port: 1/2″ NPT
- Supply Port: 3/8″ NPT
- Air Consumption: 5.9
- Max Vac -inHg”: 27
- Weight(lbs)”: .658
SSV-500-N Single Stage Vacuum Generator with Silencer
- Vacuum Flow(SCFM): 5.2
- Vacuum Port: 1/2″ NPT
- Supply Port: 3/8″ NPT
- Air Consumption: 6.0
- Max Vac -inHg”: 27
- Weight(lbs)”: .656
SSV-750-N Single Stage Vacuum Generator with Silencer
- Vacuum Flow(SCFM): 7.5
- Vacuum Port: 1/2″ NPT
- Supply Port: 3/8″ NPT
- Air Consumption: 12.9
- Max Vac -inHg”: 27.5
- Weight(lbs)”: .8935
SSV-825-N Single Stage Vacuum Generator with Silencer
- Vacuum Flow(SCFM): 8.2
- Vacuum Port: 1/2″ NPT
- Supply Port: 3/8″ NPT
- Air Consumption: 12.8
- Max Vac -inHg”: 26.0
- Weight(lbs)”: .8935

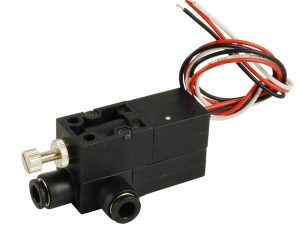

Single Stage Vacuum Generator with Valve Control and Blowoff
SSV-100DV Single Stage Vacuum Generator with Valve Control and Blowoff
- Vacuum Flow(SCFM): 1.0
- Vacuum Port: G 1/4″
- Supply Port: G 1/8″
- Air Consumption: 1.6
- Max Vac -inHg: 26.5
- Weight(lbs): .404
SSV-110DV Single Stage Vacuum Generator with Valve Control and Blowoff
- Vacuum Flow(SCFM): 1.1
- Vacuum Port: G 1/4″
- Supply Port: G1/8″
- Air Consumption: 1.6
- Max Vac -inHg: 26
- Weight(lbs): .4035
SSV-150DV Single Stage Vacuum Generator with Valve Control and Blowoff
- Vacuum Flow(SCFM): 1.5
- Vacuum Port: G 1/4″
- Supply Port: G1/8″
- Air Consumption: 3.2
- Max Vac -inHg: 27
- Weight(lbs): .4035
SSV-220DV Single Stage Vacuum Generator with Valve Control and Blowoff
- Vacuum Flow(SCFM): 2.2
- Vacuum Port: G 1/2″
- Supply Port: G 1/8″
- Air Consumption: 5.9
- Max Vac -inHg: 27
- Weight(lbs): 1.1075
SSV-515DV Single Stage Vacuum Generator with Valve Control and Blowoff
- Vacuum Flow(SCFM): 5.2
- Vacuum Port: G 1/2″
- Supply Port: G 1/8″
- Air Consumption: 6.0
- Max Vac -inHg: 27
- Weight(lbs): 1.101
Mini Multi Stage Vacuum Generator
VM5-NB Mini Multi Stage Vacuum Generator
- Vacuum Flow(SCFM): 1.2
- Vacuum Port: 3/8″ NPSF
- Supply Port: M5
- Air Consumption: .42
- Max Vac -inHg: 25
- Weight(lbs): 0.072
VM30-NC Mini Multi Stage Vacuum Generator
- Vacuum Flow(SCFM): 8.1
- Vacuum Port: 3/8″ NPSF
- Supply Port: 1/8″ NPSF
- Air Consumption: 4.41
- Max Vac -inHg: 25.1
- Weight(lbs): 0.137
VM5-NA Mini Multi Stage Vacuum Generator
- Vacuum Flow(SCFM): 1.2
- Vacuum Port: 1/8″ NPSF
- Supply Port: M5
- Air Consumption: .42
- Max Vac -inHg: 25
- Weight(lbs): 0.072
VM10-NA Mini Multi Stage Vacuum Generator
- Vacuum Flow(SCFM): 2.5
- Vacuum Port: 1/8″ NPSF
- Supply Port: M5
- Air Consumption: .99
- Max Vac -inHg”: 25
- Weight(lbs)”: 0.072
VM5-NC Mini Multi Stage Vacuum Generator
- Vacuum Flow(SCFM): 1.2
- Vacuum Port: 3/8″ NPSF
- Supply Port: 1/8″ NPSF
- Air Consumption: .42
- Max Vac -inHg: 25
- Weight(lbs): 0.08
VM10-NC Mini Multi Stage Vacuum Generator
- Vacuum Flow(SCFM): 2.5
- Vacuum Port: 3/8″ NPSF
- Supply Port: 1/8″ NPSF
- Air Consumption: .99
- Max Vac -inHg: 25
- Weight(lbs): .08
VX5-NA Mini Multi Stage Vacuum Generator
- Vacuum Flow(SCFM): 1.1
- Vacuum Port: 1/8″ NPSF
- Supply Port: M5
- Air Consumption: .63
- Max Vac -inHg: 27
- Weight(lbs): 0.072
VX10-NA Mini Multi Stage Vacuum Generator
- Vacuum Flow(SCFM): 1.8
- Vacuum Port: 1/8″ NPSF
- Supply Port: M5
- Air Consumption: 1.09
- Max Vac -inHg: 27
- Weight(lbs): 0.072
VX20-NC Mini Multi Stage Vacuum Generator
- Vacuum Flow(SCFM): 3.5
- Vacuum Port: 3/8″ NPSF
- Supply Port: 1/8″ NPSF
- Air Consumption: 2.78
- Max Vac -inHg: 27
- Weight(lbs): 0.11
VM20-NB Mini Multi Stage Vacuum Generator
- Vacuum Flow(SCFM): 5.0
- Vacuum Port: 3/8″ NPSF
- Supply Port: 1/8″ NPSF
- Air Consumption: 1.94 SCFM
- Max Vac -inHg: 24
- Weight(lbs): 0.15
VM20-NC Mini Multi Stage Vacuum Generator
- Vacuum Flow(SCFM): 5.0
- Vacuum Port: 3/8″ NPSF
- Supply Port: 1/8″ NPSF
- Air Consumption: 1.94
- Max Vac -inHg: 24
- Weight(lbs): 0.15
Mini Vacuum Generator (Hex Style) with Straight Through Silencer

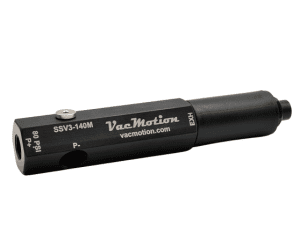

SSV3-140M Mini Vacuum Generator (Hex Style) with Straight Through Silencer
- Vacuum Flow(SCFM): 1.4
- Vacuum Port: 1/8″ NPT
- Supply Port: 1/8″ NPT
- Air Consumption: 1.30
- Weight(lbs): .1335
SSV3-140MG Mini Vacuum Generator (Hex Style) with Straight Through Silencer
- Vacuum Flow(SCFM): 1.4
- Vacuum Port: G1/8″
- Supply Port: G1/8″
- Air Consumption: 1.30
- Weight(lbs): .1320
SSV3-210M Mini Vacuum Generator (Hex Style) with Straight Through Silencer
- Vacuum Flow(SCFM): 2.1
- Vacuum Port: 1/8″ NPT
- Supply Port: 1/8″ NPT
- Air Consumption: 1.90
- Weight(lbs): .1345
SSV3-210MG Mini Vacuum Generator (Hex Style) with Straight Through Silencer
- Vacuum Flow(SCFM): 2.1
- Vacuum Port: G1/8″
- Supply Port: G1/8″
- Air Consumption: 1.90
- Weight(lbs): .1345
SSV3-320M Mini Vacuum Generator (Hex Style) with Straight Through Silencer
- Vacuum Flow(SCFM): 3.2
- Vacuum Port: 1/8″NPT
- Supply Port: 1/8″ NPT
- Air Consumption: 4.80
- Weight(lbs): .1330
SSV3-320MG Mini Vacuum Generator (Hex Style) with Straight Through Silencer
- Vacuum Flow(SCFM): 3.2
- Vacuum Port: G1/8″
- Supply Port: G1/8″
- Air Consumption: 4.80
- Weight(lbs): .1320
SSV3-120H Mini Vacuum Generator (Hex Style) with Straight Through Silencer
- Vacuum Flow(SCFM): 1.2
- Vacuum Port: 1/8″ NPT
- Supply Port: 1/8″ NPT
- Air Consumption: 1.80
- Weight(lbs): .1335
SSV3-120HG Mini Vacuum Generator (Hex Style) with Straight Through Silencer
- Vacuum Flow(SCFM): 1.2
- Vacuum Port: G1/8″
- Supply Port: G1/8″
- Air Consumption: 1.80
- Weight(lbs): .1325
SSV3-150H Mini Vacuum Generator (Hex Style) with Straight Through Silencer
- Vacuum Flow(SCFM): 1.5
- Vacuum Port: 1/8″ NPT
- Supply Port: 1/8″ NPT
- Air Consumption: 2.90
- Weight(lbs): .1335
SSV3-150HG Mini Vacuum Generator (Hex Style) with Straight Through Silencer
- Vacuum Flow(SCFM): 1.5
- Vacuum Port: G1/8″
- Supply Port: G1/8″
- Air Consumption: 2.90
- Weight(lbs): .1335
SSV3-280H Mini Vacuum Generator (Hex Style) with Straight Through Silencer
- Vacuum Flow(SCFM): 2.8
- Vacuum Port: 1/8″ NPT
- Supply Port: 1/8″ NPT
- Air Consumption: 4.70
- Weight(lbs): .1320
SSV3-280HG Mini Vacuum Generator (Hex Style) with Straight Through Silencer
- Vacuum Flow(SCFM): 2.8
- Vacuum Port: G1/8″
- Supply Port: G1/8″
- Air Consumption: 4.70
- Weight(lbs): .1325
Vacuum Generator (Hex Style) with Straight Through Silencer
SSV4-530M Vacuum Generator (Hex Style) with Straight Through Silencer
- Vacuum Flow(SCFM): 5.3
- Vacuum Port: 3/8″ NPT
- Supply Port: 1/4″ NPT
- Air Consumption: 4.80
- Weight(lbs): .5165
SSV4-530MG Vacuum Generator (Hex Style) with Straight Through Silencer
- Vacuum Flow(SCFM): 5.3
- Vacuum Port: G3/8″
- Supply Port: G1/4″
- Air Consumption: 4.80
- Weight(lbs): .5165
SSV4-450H Vacuum Generator (Hex Style) with Straight Through Silencer
- Vacuum Flow(SCFM): 4.5
- Vacuum Port: 3/8″ NPT
- Supply Port: 1/4″ NPT
- Air Consumption: 7.70
- Weight(lbs): .5175
SSV4-450HG Vacuum Generator (Hex Style) with Straight Through Silencer
- Vacuum Flow(SCFM): 4.5
- Vacuum Port: G3/8″
- Supply Port: G1/4″
- Air Consumption: 7.70
- Weight(lbs): .5175
Mini In-line Vacuum Generator with Built-in Exhaust
V-VUH-05-44 Mini In-line Vacuum Generator with Built-in Exhaust
- Vacuum Flow(SCFM): 0.3
- Vacuum Port: 4mm tube
- Supply Port: 4mm tube
- Air Consumption: 0.40
- Max Vac -inHg”: 27.5
- Weight(lbs)”: 0.052
V-VUH-05-66 Mini In-line Vacuum Generator with Built-in Exhaust
- Vacuum Flow(SCFM): 0.3
- Vacuum Port: 6mm tube
- Supply Port: 6mm tube
- Air Consumption: 0.40
- Max Vac -inHg”: 27.5
- Weight(lbs)”: 0.055
V-VUH-10-66 Mini In-line Vacuum Generator with Built-in Exhaust
- Vacuum Flow(SCFM): 1.0
- Vacuum Port: 6mm tube
- Supply Port: 6mm tube
- Air Consumption: 1.61
- Max Vac -inHg”: 27.1
- Weight(lbs)”: 0.066
V-VUH-10-S14 Mini In-line Vacuum Generator with Built-in Exhaust
- Vacuum Flow(SCFM): 1.0
- Vacuum Port: 6mm tube
- Supply Port: 1/4″ Quick Fitting
- Air Consumption: 1.61
- Max Vac -inHg”: 27.1
- Weight(lbs)”: .081

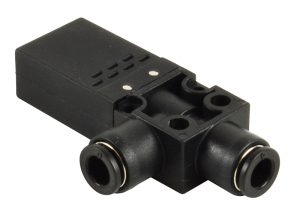

Mini Box Style Vacuum Generator With 6Mm Push-In Fittings
V-VBH-07-66P Mini Box Style Vacuum Generator With 6Mm Push-In Fittings
- Vacuum Flow(SCFM): 0.5
- Vacuum Port: 6mm tube
- Supply Port: 6mm tube
- Air Consumption: .81
- Max Vac -inHg: 27.1
- Weight(lbs): 0.040
V-VBH-12-66P Mini Box Style Vacuum Generator With 6Mm Push-In Fittings
- Vacuum Flow(SCFM): 1.3
- Vacuum Port: 6mm tube
- Supply Port: 6mm tube
- Air Consumption: 2.47
- Max Vac -inHg: 27.1
- Weight(lbs): 0.040
Classic Multi-Stage Vacuum Generator
MSVG-12-G Classic Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 12.7
- Vacuum Port: G3/4″
- Supply Port: G1/4″
- Air Consumption: 4.23
- Weight(lbs): 1.2250
MSVG-12-N Classic Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 12.7
- Vacuum Port: 3/4″ NPT
- Supply Port: 1/4″ NPT
- Air Consumption: 4.23
- Weight(lbs): 1.2250
MSVG-25-G Classic Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 25.4
- Vacuum Port: G3/4″
- Supply Port: G1/4″
- Air Consumption: 8.47
- Weight(lbs): 1.235
MSVG-25-N Classic Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 25.4
- Vacuum Port: 3/4″ NPT
- Supply Port: 1/4″ NPT
- Air Consumption: 8.47
- Weight(lbs): 1.235
MSVG-38-G Classic Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 38.1
- Vacuum Port: G3/4″
- Supply Port: G1/4″
- Air Consumption: 12.71
- Weight(lbs): 1.6635
MSVG-38-N Classic Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 38.1
- Vacuum Port: 3/4″ NPT
- Supply Port: 1/4″ NPT
- Air Consumption: 12.71
- Weight(lbs): 1.6635
MSVG-50-G Classic Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 50.8
- Vacuum Port: G3/4″
- Supply Port: G1/4″
- Air Consumption: 16.94
- Weight(lbs): 1.6475
MSVG-50-N Classic Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 50.8
- Vacuum Port: 3/4″ NPT
- Supply Port: 1/4″ NPT
- Air Consumption: 16.94
- Weight(lbs): 1.6475
MSVG-63-G Classic Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 63.5
- Vacuum Port: G1″
- Supply Port: G1/4″
- Air Consumption: 21.18
- Weight(lbs): 2.1025
MSVG-63-N Classic Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 63.5
- Vacuum Port: 1″ NPT
- Supply Port: 1/4″ NPT
- Air Consumption: 21.18
- Weight(lbs): 2.1025
MSVG-76-G Classic Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 76.3
- Vacuum Port: G1″
- Supply Port: G1/4″
- Air Consumption: 25.42
- Weight(lbs): 2.1100
MSVG-76-N Classic Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 76.3
- Vacuum Port: 1″ NPT
- Supply Port: 1/4″ NPT
- Air Consumption: 25.42
- Weight(lbs): 2.1100
Mini Box Style Vacuum Generator With Built-In Vacuum Switch
V-VBH-07-66S Mini Box Style Vacuum Generator With Built-In Vacuum Switch
- Vacuum Flow(SCFM): 0.5
- Vacuum Port: 6mm tube
- Supply Port: 6mm tube
- Air Consumption: .81
- Weight(lbs): 0.040
Mini Vacuum Generator
V-VUH-05-G18M Mini Vacuum Generator
- Vacuum Flow(SCFM): 0.3
- Vacuum Port: G1/8″
- Supply Port: 6mm tube
- Air Consumption: 0.40
- Max Vac -inHg: 27.1
- Weight(lbs): 0.55
V-VUH-10-G18M Mini Vacuum Generator
- Vacuum Flow(SCFM): 1.0
- Vacuum Port: G1/8″
- Supply Port: 6mm tube
- Air Consumption: 1.61
- Max Vac -inHg: 27.1
- Weight(lbs): 0.066

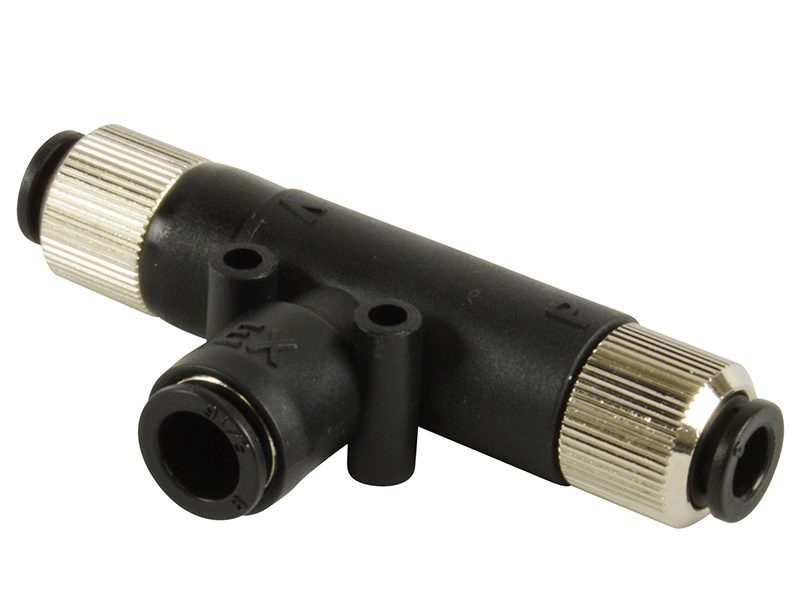

Mini T-Design Vacuum Generator
V-VTH-10-66 Mini T-Design Vacuum Generator
- Vacuum Flow(SCFM): 1.0
- Vacuum Port: 6mm tube
- Supply Port: 6mm tube
- Air Consumption: 1.61
- Max Vac -inHg: 27.1
- Weight(lbs): 0.099
Mini Vacuum Generator – Direct Mountable On Solenoid Valve
V-VHH-07-601 Mini T-Design Vacuum Generator
- Vacuum Flow(SCFM): 0.5
- Vacuum Port: 6mm tube
- Supply Port: G1/8″
- Air Consumption: 0.81
- Max Vac -inHg: 27.1
- Weight(lbs): 0.099
V-VHH-10-601 Mini T-Design Vacuum Generator
- Vacuum Flow(SCFM): 1.0
- Vacuum Port: 6mm tube
- Supply Port: G1/8″
- Air Consumption: 1.61
- Max Vac -inHg: 27.1
- Weight(lbs): 0.099

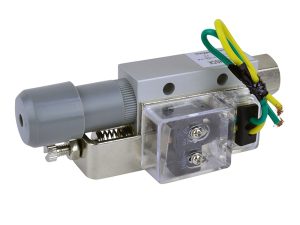

Vacuum Generator With Adjustable Vacuum Switch
V-CV10HSCK Vacuum Generator With Adjustable Vacuum Switch
- Vacuum Flow(SCFM): 1.0
- Vacuum Port: G1/8″
- Supply Port: G1/8″
- Air Consumption: 1.55
- Max Vac -inHg: 27.1
- Weight(lbs): .165
V-CV15HSCK Vacuum Generator With Adjustable Vacuum Switch
- Vacuum Flow(SCFM): 2.2
- Vacuum Port: G1/4″
- Supply Port: G1/4″
- Air Consumption: 3.53
- Max Vac -inHg: 27.1
- Weight(lbs): .3125
V-CV20HSCK Vacuum Generator With Adjustable Vacuum Switch
- Vacuum Flow(SCFM): 3.9
- Vacuum Port: G3/8″
- Supply Port: G1/4″
- Air Consumption: 6.36
- Max Vac -inHg: 27.1
- Weight(lbs): .693
Single-Stage Vacuum Generator
V-CV10HS Single-Stage Vacuum Generator
- Vacuum Flow(SCFM): 1.0
- Vacuum Port: G1/8″
- Supply Port: G1/8″
- Air Consumption: 1.55
- Max Vac -inHg: 27.1
- Weight(lbs): 0.165
V-CV15HS Single-Stage Vacuum Generator
- Vacuum Flow(SCFM): 2.2
- Vacuum Port: G1/4″
- Supply Port: G1/4″
- Air Consumption: 3.53
- Max Vac -inHg: 27.1
- Weight(lbs): 0.3125
V-CV20HS Single-Stage Vacuum Generator
- Vacuum Flow(SCFM): 3.9
- Vacuum Port: G3/8″
- Supply Port: G1/4″
- Air Consumption: 6.36
- Max Vac -inHg: 27.1
- Weight(lbs): 0.693
V-CV25HS Single-Stage Vacuum Generator
- Vacuum Flow(SCFM): 5.7
- Vacuum Port: G1/2″
- Supply Port: G3/8″
- Air Consumption: 9.36
- Max Vac -inHg: 27.1
- Weight(lbs): 1.603
V-CV25PTC Single-Stage Vacuum Generator
- Vacuum Flow(SCFM): 5.7
- Vacuum Port: G1/2″
- Supply Port: G3/8″
- Air Consumption: 9.36
- Max Vac -inHg: 27.1
- Weight(lbs): 1.4715
V-CV30HS Single-Stage Vacuum Generator
- Vacuum Flow(SCFM): 8.0
- Vacuum Port: G3/4″
- Supply Port: G1/2″
- Air Consumption: 13.60
- Max Vac -inHg: 27.1
- Weight(lbs): 1.8835

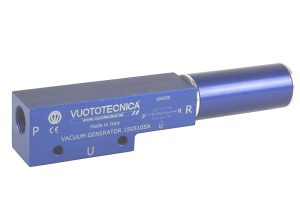

Single-Stage Vacuum Generator With Silencer
15 05 10SX Single-Stage Vacuum Generator With Silencer
The operation of these single-stage vacuum generators is based on the Venturi principle. It has increased suction flow rate, lower supply air pressure, lower than 4 bar to obtain the best performance, and a silencer with high acoustic dampening, installed as standard on the R exhaust connection.
- Vacuum Flow(SCFM): 7.4
- Vacuum Port: G1/2″
- Supply Port: G3/8″
- Air Consumption: 11.65
- Max Vac -inHg: 26.4
- Weight(lbs): 0.67
Single Stage Vacuum Generator With Automatic Blow Off Function
15 02 10 Single Stage Vacuum Generator With Automatic Blow Off Function
- Vacuum Flow(SCFM): 1.6
- Vacuum Port: G1/4″
- Supply Port: G1/4″
- Air Consumption: 1.91
- Max Vac -inHg: 24.5
- Weight(lbs): 0.703
15 04 10 Single Stage Vacuum Generator With Automatic Blow Off Function
- Vacuum Flow(SCFM): 3.0
- Vacuum Port: G3/8″
- Supply Port: G1/4″
- Air Consumption: 3.81
- Max Vac -inHg: 25
- Weight(lbs): 1.10
Single Stage Vacuum Generator

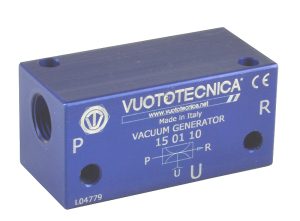

15 01 10 Single Stage Vacuum Generator
- Vacuum Flow(SCFM): 1.6
- Vacuum Port: G1/4″
- Supply Port: G1/4″
- Air Consumption: 1.91
- Max Vac -inHg: 24.5
- Weight(lbs): 0.308
15 03 10 Single Stage Vacuum Generator
- Vacuum Flow(SCFM): 3.0
- Vacuum Port: G3/8″
- Supply Port: G1/4″
- Air Consumption: 3.81
- Max Vac -inHg: 25
- Weight(lbs): 0.308
PVP 2 Single Stage Vacuum Generator
- Vacuum Flow(SCFM): 1.8
- Vacuum Port: G1/4″
- Supply Port: G1/8″
- Air Consumption: 2.12
- Max Vac -inHg: 25
- Weight(lbs): 0.154
PVP 2 M Single Stage Vacuum Generator
- Vacuum Flow(SCFM): 1.8
- Vacuum Port: G3/8″
- Supply Port: G1/8″
- Air Consumption: 2.12
- Max Vac -inHg: 25
- Weight(lbs): 0.357
PVP 3 Single Stage Vacuum Generator
- Vacuum Flow(SCFM): 2.2
- Vacuum Port: G1/4″
- Supply Port: G1/8″
- Air Consumption: 3.18
- Max Vac -inHg: 25
- Weight(lbs): 0.220
PVP 7 SX Single Stage Vacuum Generator
- Vacuum Flow(SCFM): 5.2
- Vacuum Port: G3/8″
- Supply Port: G1/4″
- Air Consumption: 6.78
- Max Vac -inHg: 25
- Weight(lbs): 1.03
Single Stage Vacuum Generator
GV 1 Single Stage Vacuum Generator
The feature that distinguishes this model from classic vacuum generators is the two air supply and the vacuum connections, located on the same axis, while the connection relative to the intake-air discharge and exhaust air connections are set orthogonally to them.
The advantages of this configuration are less bulky dimensions, easy assembly, and ease of maintenance. These vacuum generators can be assembled directly onto the vacuum cup supports or on cup holders.
They are fully made with anodized aluminum, except the exhaust nozzle which is brass.
- Vacuum Flow(SCFM): 0.6
- Vacuum Port: M5
- Supply Port: G1/4″
- Air Consumption: 1.48
- Max Vac -inHg: 25
- Weight(lbs): 0.041

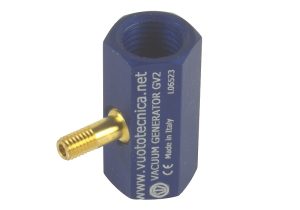

GV 2 Single Stage Vacuum Generator
- Vacuum Flow(SCFM): 0.6
- Vacuum Port: G1/8″
- Supply Port: G1/4″
- Air Consumption: 1.48
- Max Vac -inHg: 25
- Weight(lbs): 0.044
GV 3 Single Stage Vacuum Generator
- Vacuum Flow(SCFM): 0.6
- Vacuum Port: G1/4″
- Supply Port: G1/4″
- Air Consumption: 1.48
- Max Vac -inHg: 25
- Weight(lbs): 0.083
Multi-Stage Vacuum Generator
M 3 Multi-Stage Vacuum Generator
These new design vacuum generators feature multiple state of the art ejectors assembled onto small modules. One of their distinctive features is their great suction flow rate compared to their reduced size.
With a compressed air supply of 4 – 5 bar, they can produce a maximum vacuum equal to 85% and a suction flow rate of 3.6 – 18 m3/h, according to the number of modules.
The silencer is built-in.
They are fully made with slightly anodized alloys and can be installed in any position. The multi-stage vacuum generators in this range are suited for interconnecting vacuum cup gripping systems and, in particular, in the industrial robotics sector, which requires equipment with excellent working performance, but with weight and size reduced to the minimum.
- Vacuum Flow(SCFM): 2.1
- Vacuum Port: G1/4″
- Supply Port: G1/8″
- Air Consumption: 1.69
- Max Vac -inHg: 25
- Weight(lbs): 0.240

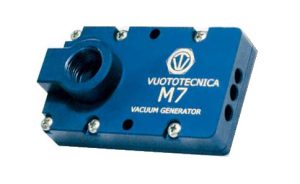

M 7 Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 2.6
- Vacuum Port: G3/8″
- Supply Port: G1/8″
- Air Consumption: 2.97
- Max Vac -inHg: 25
- Weight(lbs): 0.244
M 10 Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 5.5
- Vacuum Port: G3/8″
- Supply Port: G1/8″
- Air Consumption: 4.03
- Max Vac -inHg: 25
- Weight(lbs): 0.317
M 14 Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 7.4
- Vacuum Port: G3/8″
- Supply Port: G1/8″
- Air Consumption: 4.03
- Max Vac -inHg: 25
- Weight(lbs): 0.319
M 18 Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 10.6
- Vacuum Port: G3/8″
- Supply Port: G1/8″
- Air Consumption: 7.63
- Max Vac -inHg: 25
- Weight(lbs): 0.330
M 3 SSX Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 2.1
- Vacuum Port: G1/4″
- Supply Port: G1/8″
- Air Consumption: 1.69
- Max Vac -inHg: 25
- Weight(lbs): 0.240
M 7 SSX Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 2.6
- Vacuum Port: G3/8″
- Supply Port: G1/8″
- Air Consumption: 2.97
- Max Vac -inHg: 25
- Weight(lbs): 0.244
M 10 SSX Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 5.5
- Vacuum Port: G3/8″
- Supply Port: G1/8″
- Air Consumption: 4.03
- Max Vac -inHg: 25
- Weight(lbs): 0.317
M 14 SSX Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 7.4
- Vacuum Port: G3/8″
- Supply Port: G1/8″
- Air Consumption: 5.30
- Max Vac -inHg: 25
- Weight(lbs): 0.320
M 18 SSX Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 10.6
- Vacuum Port: G3/8″
- Supply Port: G1/8″
- Air Consumption: 7.63
- Max Vac -inHg: 25
- Weight(lbs): 0.331
Multi-Stage Vacuum Generator

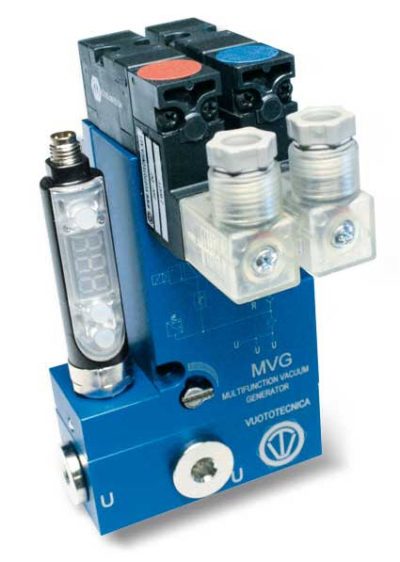

MVG 3 Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 1.9
- Vacuum Port: G1/4″
- Supply Port: G1/8″
- Air Consumption: 1.69
- Max Vac -inHg: 25
- Weight(lbs): 1.47
MVG 7 Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 3.9
- Vacuum Port: G3/8″
- Supply Port: G1/8″
- Air Consumption: 2.75
- Max Vac -inHg: 25
- Weight(lbs): 1.48
MVG 10 Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 5.4
- Vacuum Port: G3/8″
- Supply Port: G1/8″
- Air Consumption: 3.60
- Max Vac -inHg: 25
- Weight(lbs): 1.58
MVG 14 Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 7.2
- Vacuum Port: G3/8″
- Supply Port: G1/8″
- Air Consumption: 4.45
- Max Vac -inHg: 126.00
- Weight(lbs): 1.59
Single Stage Vacuum Generator
AVG 18 Single Stage Vacuum Generator
- Vacuum Flow(SCFM): 10.2
- Vacuum Port: G1/2″
- Supply Port: G3/8″
- Air Consumption: 13.56
- Max Vac -inHg: 25
- Weight(lbs): 3.68
AVG 25 Single Stage Vacuum Generator
- Vacuum Flow(SCFM): 14.8
- Vacuum Port: G1/2″
- Supply Port: G3/8″
- Air Consumption: 20.34
- Max Vac -inHg: 25
- Weight(lbs): 3.68
Multi-Stage Vacuum Generator

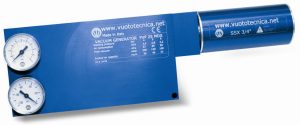

PVP 12 MX Multi-Stage Vacuum Generator
This range of multiple ejector vacuum generators offers increased suction flow rate, given the same compressed air consumption, over single-stage models.
They are fully made with anodized aluminum, with stainless steel ejectors and screws. The EPDM seals, the silicone reed valves and the vacuum gauge are provided as standard. They are equipped with additional intake connections for increased points of usage or control tools.
The suctioned air discharge connections are threaded to allow for installation, upon request, of “free-flow” SSX high sound damping silencers.
- Vacuum Flow(SCFM): 12.3
- Vacuum Port: G3/8″
- Supply Port: G1/4″
- Air Consumption: 3.81
- Max Vac -inHg: 27
- Weight(lbs): 1.46
PVP 25 MX Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 18.2
- Vacuum Port: G3/8″
- Supply Port: G1/4″
- Air Consumption: 6.78
- Max Vac -inHg: 27
- Weight(lbs): 2.12
Multi-Stage Vacuum Generator
PVP 40 M Multi-Stage Vacuum Generator
Created to be assembled on OCTOPUS gripping systems, this series of generators is available with suction capacities between 24 and 320 m3/h. Level of vacuum and flow rate can be adjusted according to the supply air pressure.
Characterized by their new generation of ejectors, boasting an excellent ratio between the quantity of air consumed and that suctioned, benefiting operational consumption. The silencers are built into all generators.
They are fully made with anodized aluminum, with stainless steel ejectors and screws. EPDM or VITON seals and reed valves upon request.
Low maintenance and simple scheduled filter cleaning.
- Vacuum Flow(SCFM): 24.7
- Vacuum Port: G1″
- Supply Port: G1/2″
- Air Consumption: 6.78
- Max Vac -inHg: 27
- Weight(lbs): 9.26
PVP 70 M Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 47.1
- Vacuum Port: G1″
- Supply Port: G1/2″
- Air Consumption: 13.98
- Max Vac -inHg: 27
- Weight(lbs): 9.26
PVP 100 M Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 63.6
- Vacuum Port: G1″
- Supply Port: G1/2″
- Air Consumption: 20.76
- Max Vac -inHg: 27
- Weight(lbs): 9.26
PVP 140 M Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 89.5
- Vacuum Port: G1-1/2″
- Supply Port: G1/2″
- Air Consumption: 27.54
- Max Vac -inHg: 27
- Weight(lbs): 11.24
PVP 170 M Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 107.1
- Vacuum Port: G1-1/2″
- Supply Port: G1/2″
- Air Consumption: 34.53
- Max Vac -inHg: 27
- Weight(lbs): 11.24
PVP 200 M Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 117.7
- Vacuum Port: G1-1/2″
- Supply Port: G1/2″
- Air Consumption: 41.10
- Max Vac -inHg: 27
- Weight(lbs): 11.24
PVP 250 M Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 164.8
- Vacuum Port: G2″
- Supply Port: G1/2″
- Air Consumption: 50.85
- Max Vac -inHg: 27
- Weight(lbs): 13.22
PVP 300 M Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 188.3
- Vacuum Port: G2″
- Supply Port: G1/2″
- Air Consumption: 61.44
- Max Vac -inHg: 27
- Weight(lbs): 13.22
Multi-Stage Vacuum Generator

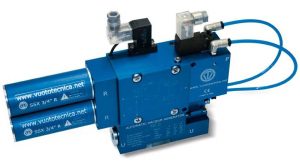

PVP 25 MDX Multi-Stage Vacuum Generator
This line of generators is available with suction rates between 20 and 103 m3/h. The maximum level of vacuum is -90 KPa.
Characterized by their new generation of ejectors, boasting an excellent ratio between the quantity of air consumed and that suctioned, benefiting operational consumption. They are fully made with anodized aluminum, with stainless steel ejectors and screws. The tightness seal is made from EPDM, while the reed valves are made as standard and in VITON®, upon request. The “free-flow” SSX high sound damping silencers installed as standard on the air exhaust. They are equipped with additional threaded connections for increased points of usage or for the installation of measurement or control tools.
Upon request, can be supplied with a compressed air energy savings kit ES (ENERGY SAVING SYSTEM), composed of a pneumatic vacuum regulator, a pneumatic coaxial shutter supply valve, a check valve and necessary tubing.
- Vacuum Flow(SCFM): 25.3
- Vacuum Port: G3/4″
- Supply Port: G1/4″
- Air Consumption: 6.78
- Max Vac -inHg: 27
- Weight(lbs): 3.77
PVP 35 MDX Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 33.5
- Vacuum Port: G3/4″
- Supply Port: G1/4″
- Air Consumption: 10.17
- Max Vac -inHg: 27
- Weight(lbs): 3.81
PVP 50 MDX Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 40.0
- Vacuum Port: G3/4″
- Supply Port: G1/4″
- Air Consumption: 13.77
- Max Vac -inHg: 27
- Weight(lbs): 3.86
PVP 60 MDX Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 54.1
- Vacuum Port: G1″
- Supply Port: G3/8″
- Air Consumption: 17.37
- Max Vac -inHg: 27
- Weight(lbs): 4.19
PVP 75 MDX Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 60.6
- Vacuum Port: G1″
- Supply Port: G3/8″
- Air Consumption: 20.77
- Max Vac -inHg: 27
- Weight(lbs): 4.23
Multi-Stage Vacuum Generator

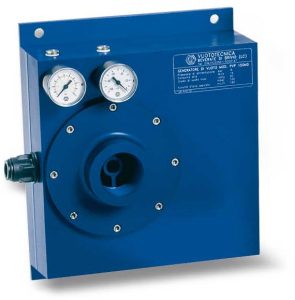

PVP 150 MD Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 117.7
- Vacuum Port: G1-1/2″
- Supply Port: Quick fitting
- Air Consumption: 33.9
- Max Vac -inHg: 27
- Weight(lbs): 17.19
PVP 300 MD Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 235.4
- Vacuum Port: G2″
- Supply Port: Quick fitting
- Air Consumption: 67.80
- Max Vac -inHg: 27
- Weight(lbs): 19.40
PVP 450 MD Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 341.4
- Vacuum Port: G2-1/2″
- Supply Port: Quick fitting
- Air Consumption: 101.28
- Max Vac -inHg: 27
- Weight(lbs): 21.82
PVP 600 MD Multi-Stage Vacuum Generator
- Vacuum Flow(SCFM): 441.4
- Vacuum Port: G3″
- Supply Port: Quick fitting
- Air Consumption: 133.91
- Max Vac -inHg: 27
- Weight(lbs): 24.47
