Vacuum Valves
VacMotion vacuum valves are designed for precise control of vacuum systems, offering options such as normally open, normally closed, and 3-way valves. These valves ensure efficient operation in automation and material handling applications by regulating air flow and vacuum levels. With durable construction and reliable performance, VacMotion’s vacuum valves provide flexibility and dependability for a wide range of applications that require a quick exchange between the vacuum source and the circuit, for a quick restoration of atmospheric pressure.
Product Lineup

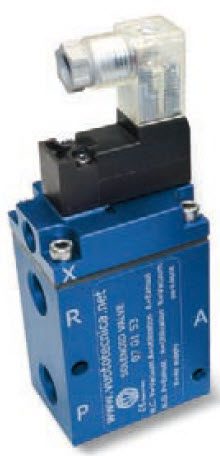

Pilot operated 3-way vacuum valve
- Valve Type: 3 way valve
- Vacuum Level: 0.39 – 29.91 (1000 – 0.5)

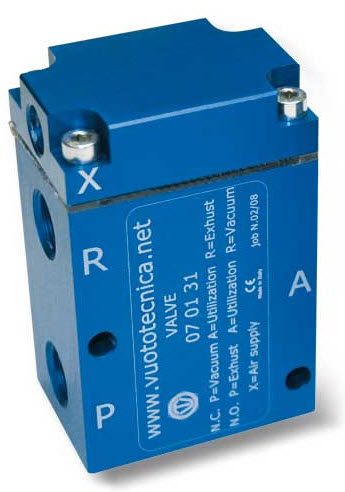

070131 Pilot operated 3-way vacuum valve
- Port Size: G1/4″
- Orifice Size: 8.5 mm
- Max Capacity SCFM(cum/h): 3.5
070231 Pilot operated 3-way vacuum valve
- Port Size: G3/8″
- Orifice Size: 11.5 mm
- Max Capacity SCFM(cum/h): 5.9
070331 Pilot operated 3-way vacuum valve
- Port Size: G1/2″
- Orifice Size: 15 mm
- Max Capacity SCFM(cum/h): 11.8
070431 Pilot operated 3-way vacuum valve
- Port Size: G3/4″
- Orifice Size: 20 mm
- Max Capacity SCFM(cum/h): 23.5
070531 Pilot operated 3-way vacuum valve
- Port Size: G1″
- Orifice Size: 25 mm
- Max Capacity SCFM(cum/h): 53.0
070631 Pilot operated 3-way vacuum valve
- Port Size: G1-1/2″
- Orifice Size: 40 mm
- Max Capacity SCFM(cum/h): 105.9

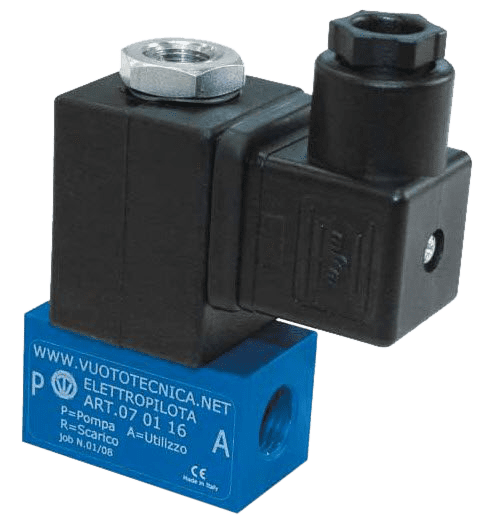

3-way Vacuum Solenoid Pilot Valve
3/2 NC, Solenoid And Connector Sold Separately
- Valve Type: 3 way NC
- Vacuum Level: 1″-29.53″Hg (0.5 to 1000)
- Configuration: 3 way
- Weight lbs(kg): 0.547
070116 3-way Vacuum Solenoid Pilot Valve
- Port Size: G1/4″
- Orifice Size: 6 mm
- Max Capacity SCFM(cum/h): 2.5
070216 3-way Vacuum Solenoid Pilot Valve
- Port Size: G3/8″
- Orifice Size: 10 mm
- Max Capacity SCFM(cum/h): 5.0
070316 3-way Vacuum Solenoid Pilot Valve
- Port Size: G1/2″
- Orifice Size: 12 mm
- Max Capacity SCFM(cum/h): 6.0

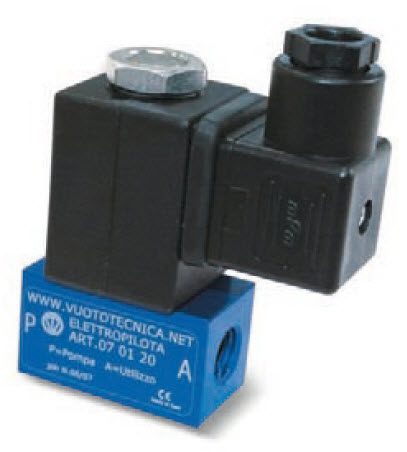

2-way Vacuum Solenoid Pilot Valve
2/2 NC, Solenoid And Connector Sold Separately
- Valve Type: 2 way valve
- Vacuum Level: 1″-29.53″Hg (0.5 to 1000)
- Configuration: 2 way
070120 2-way Vacuum Solenoid Pilot Valve
- Port Size: G1/4″
- Orifice Size: 6 mm
- Max Capacity SCFM(cum/h): 2.5
070220 2-way Vacuum Solenoid Pilot Valve
- Port Size: G3/8″
- Orifice Size: 10 mm
- Max Capacity SCFM(cum/h): 5.0
070320 2-way Vacuum Solenoid Pilot Valve
- Port Size: G1/2″
- Orifice Size: 12 mm
- Max Capacity SCFM(cum/h): 6.0

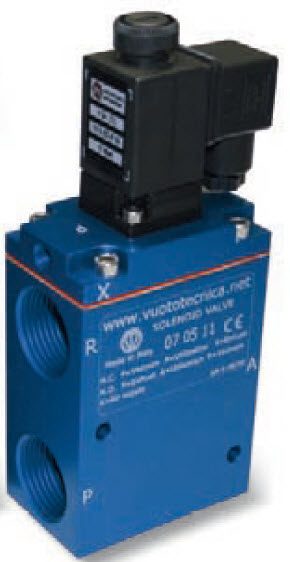

Servo-Controlled 3-Way Vacuum Solenoid Valve
Servo-Control Pressure PSI (87-116), Solenoid And Connector Sold Separately
- Valve Type: 3 way valve
- Vacuum Level: 1″-29.53″Hg (0.5 to 1000)
- Configuration: 3 way
070111 Servo-Controlled 3-Way Vacuum Solenoid Valve
- Port Size: G1/4″
- Orifice Size: 8.5
- Max Capacity SCFM(cum/h): 3.5
070211 Servo-Controlled 3-Way Vacuum Solenoid Valve
- Port Size: G3/8″
- Orifice Size: 11.5 mm
- Max Capacity SCFM(cum/h): 6.0
070311 Servo-Controlled 3-Way Vacuum Solenoid Valve
- Port Size: G1/2″
- Orifice Size: 15 mm
- Max Capacity SCFM(cum/h): 12.0
070411 Servo-Controlled 3-Way Vacuum Solenoid Valve
- Port Size: G3/4″
- Orifice Size: 20 mm
- Max Capacity SCFM(cum/h): 23.5
070611 Servo-Controlled 3-Way Vacuum Solenoid Valve
- Port Size: G1-1/2″
- Orifice Size: 40 mm
- Max Capacity SCFM(cum/h): 106.0
070511 Servo-Controlled 3-Way Vacuum Solenoid Valve
- Port Size: G1″
- Orifice Size: 25 mm
- Max Capacity SCFM(cum/h): 53.0

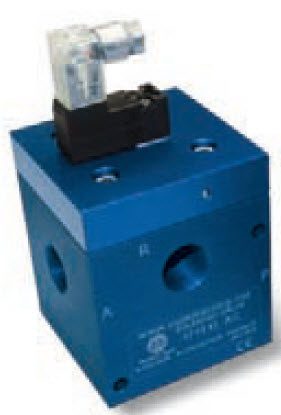

Direct Acting 3-Way Vacuum Solenoid Valve
NO or NC, Solenoid And Connector Sold Separately
- Valve Type: 3 way NC
- Vacuum Level: 1-25 Hg”
- Configuration: 3 way

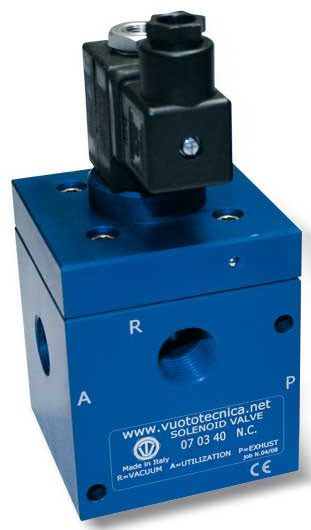

070340NC & 070340NO Direct Acting 3-Way Vacuum Solenoid Valve
- Port Size: G1/2″
- Orifice Size: 15 mm
- Max Capacity SCFM(cum/h): 12.0
070440NC & 070440NO Direct Acting 3-Way Vacuum Solenoid Valve
- Port Size: G3/4″
- Orifice Size: 20 mm
- Max Capacity SCFM(cum/h): 24.0
070540NC & 070540NO Direct Acting 3-Way Vacuum Solenoid Valve
- Port Size: G1″
- Orifice Size: 25 mm
- Max Capacity SCFM(cum/h): 53.0
070640NC & 070640NO Direct Acting 3-Way Vacuum Solenoid Valve
- Port Size: G1-1/2″
- Orifice Size: 40 mm
- Max Capacity SCFM(cum/h): 105.9

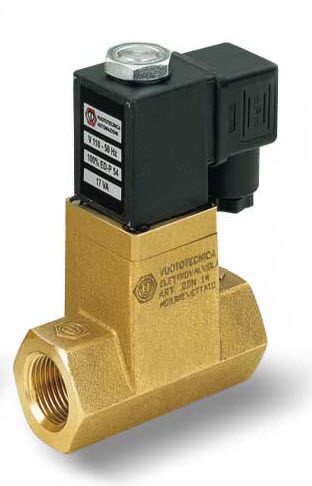

Direct Acting 2-Way Vacuum Solenoid Valve
Solenoid And Connector Sold Separately
- Valve Type: 2 way valve
- Vacuum Level: 1″-29.53″Hg (0.5 to 1000)
- Configuration: 2 way
DDN14 Direct Acting 2-Way Vacuum Solenoid Valve
- Port Size: G1/2″
- Orifice Size: 14 mm
- Max Capacity SCFM(cum/h): 12.0
DDN25 Direct Acting 2-Way Vacuum Solenoid Valve
- Port Size: G1″
- Orifice Size: 25 mm
- Max Capacity SCFM(cum/h): 53.0

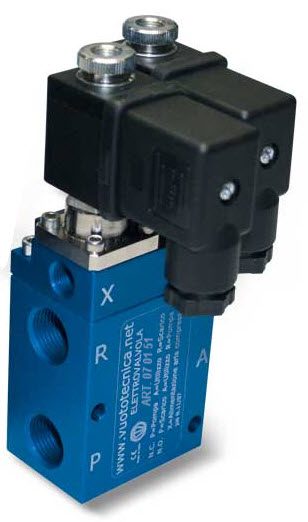

Servo-Controlled 3-Way Vacuum Solenoid, Double Solenoid
Solenoid And Connector Sold Separately
- Valve Type: 3 way valve
- Vacuum Level: 1″-29.53″Hg (0.5 to 1000)
- Configuration: 3 way
070151 Servo-Controlled 3-Way Vacuum Solenoid, Double Solenoid
- Port Size: G1/4″
- Orifice Size: 8.5 mm
- Max Capacity SCFM(cum/h): 3.5
070251 Servo-Controlled 3-Way Vacuum Solenoid, Double Solenoid
- Port Size: G3/8″
- Orifice Size: 11.5 mm
- Max Capacity SCFM(cum/h): 6.0
070351 Servo-Controlled 3-Way Vacuum Solenoid, Double Solenoid
- Port Size: G1/2″
- Orifice Size: 15 mm
- Max Capacity SCFM(cum/h): 12.0
070451 Servo-Controlled 3-Way Vacuum Solenoid, Double Solenoid
- Port Size: G3/4″
- Orifice Size: 20 mm
- Max Capacity SCFM(cum/h): 23.5
070551 Servo-Controlled 3-Way Vacuum Solenoid, Double Solenoid
- Port Size: G1″
- Orifice Size: 25 mm
- Max Capacity SCFM(cum/h): 53.0
070651 Servo-Controlled 3-Way Vacuum Solenoid, Double Solenoid
- Port Size: G1-1/2″
- Orifice Size: 40 mm
- Max Capacity SCFM(cum/h): 106.0
Servo-Controlled 3-Way Vacuum Solenoid Valves with Bistable Impulse Solenoid Pilot Valve and Low Absorption Electrical Coil
Servo-Control pressure 58-101 PSI, Solenoid And Connector Sold Separately
- Valve Type: Servo controlled
- Vacuum Level: 1″-29.53″Hg (0.5 to 1000)
- Configuration: 3 way
070153 Servo-Controlled 3-Way Vacuum Solenoid Valves with Bistable Impulse Solenoid Pilot Valve and Low Absorption Electrical Coil
- Port Size: G1/4″
- Orifice Size: 8.5 mm
- Max Capacity SCFM(cum/h): 3.5
070253 Servo-Controlled 3-Way Vacuum Solenoid Valves with Bistable Impulse Solenoid Pilot Valve and Low Absorption Electrical Coil
- Port Size: G3/8″
- Orifice Size: 11.5 mm
- Max Capacity SCFM(cum/h): 6.0
070353 Servo-Controlled 3-Way Vacuum Solenoid Valves with Bistable Impulse Solenoid Pilot Valve and Low Absorption Electrical Coil
- Port Size: G1/2″
- Orifice Size: 15 mm
- Max Capacity SCFM(cum/h): 12.0
070453 Servo-Controlled 3-Way Vacuum Solenoid Valves with Bistable Impulse Solenoid Pilot Valve and Low Absorption Electrical Coil
- Port Size: G3/4″
- Orifice Size: 20 mm
- Max Capacity SCFM(cum/h): 23.5
070553 Servo-Controlled 3-Way Vacuum Solenoid Valves with Bistable Impulse Solenoid Pilot Valve and Low Absorption Electrical Coil
- Port Size: G1″
- Orifice Size: 25 mm
- Max Capacity SCFM(cum/h): 53.0
070653 Servo-Controlled 3-Way Vacuum Solenoid Valves with Bistable Impulse Solenoid Pilot Valve and Low Absorption Electrical Coil
- Port Size: G1-1/2″
- Orifice Size: 40 mm
- Max Capacity SCFM(cum/h): 106.0
Direct Drive Vacuum Solenoid Valves with Low Absorption Electrical Coil
NO or NC, Connector Sold Separately
- Valve Type: Direct acting
- Vacuum Level: 1″-29.53″Hg (0.5 to 1000)
- Configuration: 3 way
070343NC & 070343NO Direct Drive Vacuum Solenoid Valves with Low Absorption Electrical Coil
- Port Size: G1/2″
- Orifice Size: 15 mm
070443NC & 070443NO Direct Drive Vacuum Solenoid Valves with Low Absorption Electrical Coil
- Port Size: G3/4″
- Orifice Size: 20 mm
070543NC & 070543NO Direct Drive Vacuum Solenoid Valves with Low Absorption Electrical Coil
- Port Size: G1″
- Orifice Size: 25 mm
- Max Capacity SCFM(cum/h): 53.0
070363NC & 070363NO Direct Drive Vacuum Solenoid Valves with Low Absorption Electrical Coil
- Port Size: G1/2″
- Orifice Size: 15 mm
- Max Capacity SCFM(cum/h): 12.0
070463NC & 070463NC Direct Drive Vacuum Solenoid Valves with Low Absorption Electrical Coil
- Port Size: G3/4″
- Orifice Size: 20 mm
- Max Capacity SCFM(cum/h): 23.5
070563NC & 070563NO Direct Drive Vacuum Solenoid Valves with Low Absorption Electrical Coil
- Port Size: G1″
- Orifice Size: 25 mm
- Max Capacity SCFM(cum/h): 53.0
