Valves
Versa Valves are available in 316 stainless steel, brass, and aluminum. The modular designs allow for multiple variations of solenoid, pilot, manual, and mechanically actuated valves.
Product Lineup

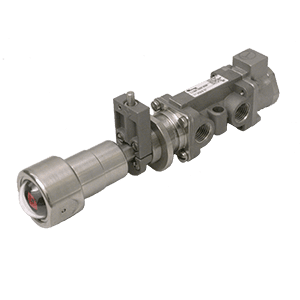

V-316 Series
The Versa V-316 Series is ruggedly constructed, both externally and internally of 316 stainless steel. Designed to withstand the physical abuse of corrosive environments and controlled media, the modular design concept of this series simplifies circuit planning and offers unlimited configurations.
For more information about this product…
Download a Catalog

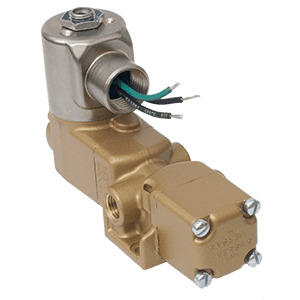

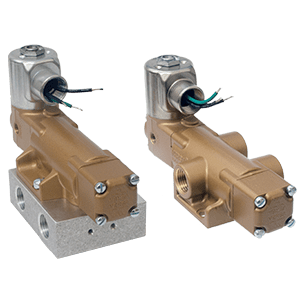

V Series Brass
For pneumatic, and low pressure hydraulic, directional control applications, Versa offers a V Series valve for trouble-free performance under the most exacting conditions
V Series valves are available with solenoid, manual, mechanical, and pilot actuators. Also available are unique features such as lockout, latching manual reset, and redundant coils.
T Series Brass
Low pressure, hydraulic directional control valves available from 0 to 500 psi for trouble-free performance under the most exacting conditions
T Series valves are available with solenoid, manual, mechanical, or pilot actuators. Also available are unique features such as lockout, latching manual reset, and redundant coils.
Our modular design offers solutions to a wide range of applications. Our valve construction allows valve bodies and actuating devices to be interchanged end for end and valve for valve in many cases.
T Series valves are designed for the control of hydraulic pressures from 0 to 500 psi (35bar).

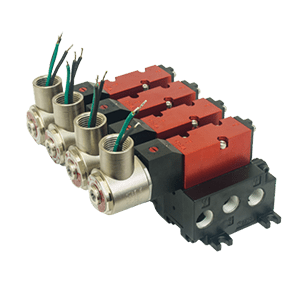

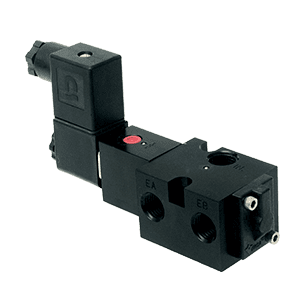

C Series Aluminum
The C5 is a four-way manifold mounted and body ported, two/three position (5/2 5/3) valves, with ⅛” NPT ports standard and ISO G thread optional. An optional Pre-Wired sub D connector can support up to 12 valves on a manifold. The body ported valves are of a universal flow design, solenoid, manual or pilot operated and can be mounted individually or side by side using #6 screws or on a 2 to 10 station rack mounted manifold.
The C7 is a four-way manifold mounted and body ported, two/three position (5/2 5/3) valve, with ¼” NPT ports standard and ISO G thread optional. An optional Pre-Wired sub D connector can support up to 12 valves on a manifold.
The C9 is a four-way manifold mounted and body ported, two/three position (5/2 5/3) valve, with ½” NPT ports. An optional Pre-Wired Amphonal 19 pin connector can support up to 8 valves on a manifold. The body ported valves are of a universal flow design, solenoid, or pilot operated and can be mounted individually or side by side using ¼” screws.
Overrides – Four types of overrides are available: Standard, Suffix Detail -G, -M and -CML. The standard is a push twist to lock, requires no call out. -G is a guarded momentary contact, -M is an unguarded momentary contact and -CML is a raised grip, push twist to lock. Two styles are available depending on the solenoid pilot cap used; engineered polymer or aluminum. The engineered polymer -CML, -M & standard. The aluminum -CML, -M, -G & standard.
For more information about this product…
Download a Catalog

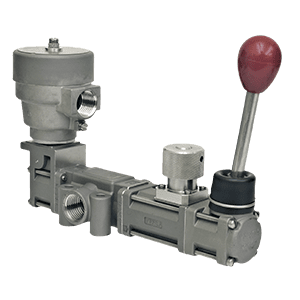

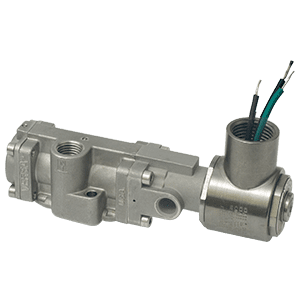

C-316 Series
The Versa C-316 Series stainless steel body ported valve is a high flow, 3 or 4-way valve. The sealing design utilizes Versa’s proven elastomer packed plunger producing bubble-tight performance along with long trouble-free life. This seal design also yields the highest flow available in the smallest possible package. Available actuation would be solenoid, pilot, manual and mechanical.
For more information about this product…
Download a Catalog

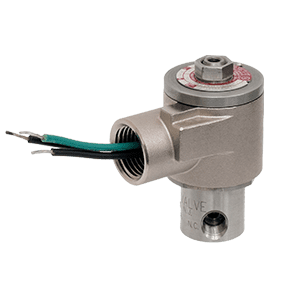

D-316 Series
The D-316 Series valve is a high-performance high flow direct acting solenoid valve. Designed as a 3-way (3/2), it is a true multipurpose/universal flow valve. A bubble tight valve throughout its complete operating range and cycle life. Suitable for air, natural gas, and hydraulic media.
For more information about this product…
Download a Catalog

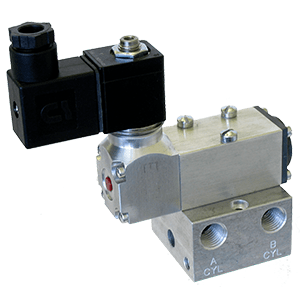

Namur – C Series
The C5 Versa NAMUR aluminum control valve is a high flow, bubble tight design that mounts directly to any NAMUR actuator. This increases actuator response time while reducing space needs. Lower installed costs are realized as the need for tubing, fittings, brackets and assembly labor are reduced. All mounting screws and seals are included with the valve. The C5 valve is field convertible from 4-way to 3-way.
For more information about this product…
Download a Catalog

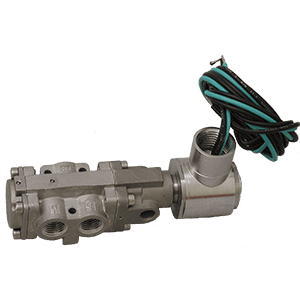

Namur – C-316 Series
Versa’s C-316 Series NAMUR stainless steel control valve is a high flow, bubble tight design that mounts directly to any NAMUR actuator. This increases actuator response time and reduces cost and space requirements. Lower installed costs are realized as the need for tubing, fittings, brackets and assembly labor are reduced.
For more information about this product…
Download a Catalog
Namur – E Series
The Versa NAMUR mount control valves are high flow, bubble tight, direct acting or solenoid/pilot operated. They are designed to mount directly to any NAMUR actuator, thus reducing actuator response time and cost of tubing, fittings, brackets, and labor. These valves are available in two materials – Aluminum and 316L stainless steel. E5 is a direct acting 3-way (3/2) solenoid valve. C5 and C316 are solenoid/pilot operated high flow, 5-port NAMUR valves. They are available as single or double solenoid 2-position (C5 – C316) and 3-position (C5) models. Single solenoid spring return models utilize an air assisted spring return feature, assuring a positive return. Double solenoid valves may be used in applications where a momentary signal is required or in a “fail in last shifted position” actuator application. A complete selection of electrical connections, area classifications, and power requirements makes the most exacting and demanding specifications or applications easy to satisfy.
For more information about this product…
Download a Catalog
E Series
Versa E series, ESM style, are direct solenoid operated valves that are available in 2 or 3 way flow functions. Options such as hazardous location coils, low watt coils, and intrinsically safe coils are available. Other options include manifold mounting and all stainless construction.
For more information about this product…
Download a Catalog

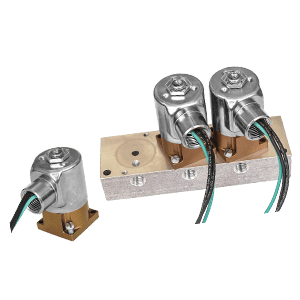

E Series Aluminum
Versa E Series are direct solenoid operated valves that are available in 2 or 3-way flow functions and with or without manifold systems. Manifold systems allow for connecting common ports to eliminate the expense and time associated with additional piping and/or tubing. Manifold systems also reduce space requirements. Other solenoid and seal materials are available.
For more information about this product…
Download a Catalog

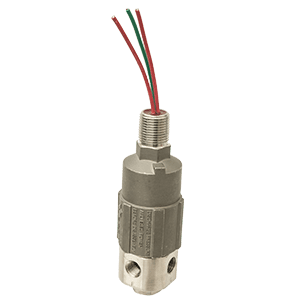

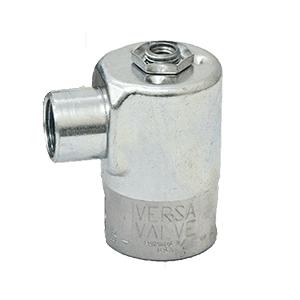

E3 Series
Versa E3 Series inline valves are designed for the most extreme environments
The Versa E3 Series is a direct acting, inline, space saving valve designed in 316 stainless steel with large orifices for greater flow. These valves are built to withstand the physical abuse of corrosive environments and hazardous locations.
For more information about this product…
Download a Catalog

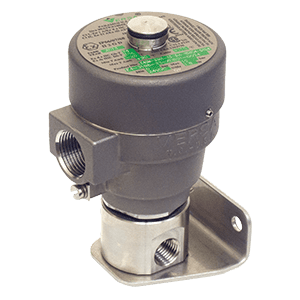

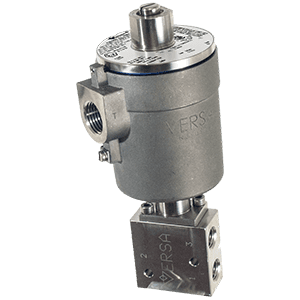

E4 Series
Versa E4 is a compact, heavy duty, direct acting solenoid, with an integral junction box, designed for world markets.
The Versa E4 Series valve is available with 430 or 316 stainless steel for use in hazardous locations with IEC, ATEX, and CSA certifications.
For more information about this product…
Download a Catalog
E5 Series
Series E5 compact valves are direct solenoid actuated Valves. They are physically smaller than the Series E full-size valves, but offer most of the same orifice sizes and operating pressure ranges as the larger valves. Ports are 1/8 NPT in the valve body and the valves are individually mounted.
For more information about this product…
Download a Catalog

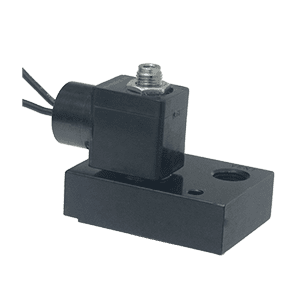

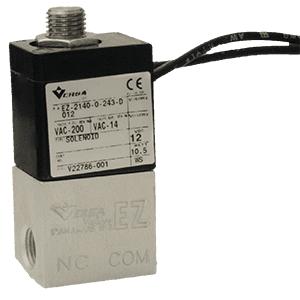

EZ Series Aluminum
The Series EZ valves are aluminum bodies with direct acting solenoids. They are physically the smallest of the E Family valves. Available as side ported or manifold mounted with 1/8” NPT ports.
For more information about this product…
Download a Catalog

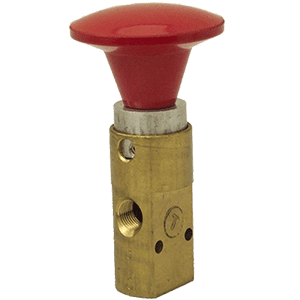

B-Series Brass
Our B Series valves use a simple design allowing for the addition of a range of manual, pilot and mechanical actuator controls. This valve is based on Versa’s proven bubble-tight sealing technology and rated for air, oil or water.
Two-Way Types: Ideal for bleeding pilots of larger valves, for bleeding cylinders or small pressure systems, operating air tools or motors, opening or closing air lines
Three-Way Types: Ideal for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternately pressurized and exhausted.
Pneumatic service: From vacuum to 200 psi (14 bar)
Hydraulic (two-way) service: Up to 500 psi (35 bar)
For more information about this product…
Download a Catalog
B-316 Series
The B-316 Series, designed for use in corrosive environments and with aggressive media, are the premier choice of pneumatic control panel builders. These valves are compact yet packed with ample flow. B-316 valves are offered with optional special purpose latches, indicators and resets. Ideally suited for wellhead control applications.
For more information about this product…
Download a Catalog

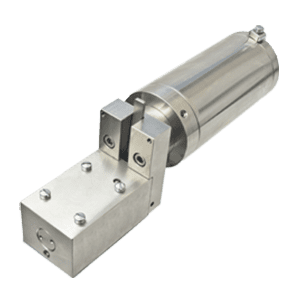

H Series
Versa offers a range of bubble tight, leak proof, high pressure pneumatic and hydraulic valves that are ideally suited to the unique needs of the oil and gas industry. They range in size from .7 GPM to 10.5 GPM. The valves are available in 2, 3, and 4-way flow functions with solenoid and pilot actuators. All the valves are constructed with 316 stainless steel and can be applied a a single station manifold unit or incorporated into a custom manifold unit designed to meet the needs of the application.
For more information about this product…
Download a Catalog
H Series Aluminum
Versa is offering a range of bubble tight leak-proof, high-pressure hydraulic and pneumatic valves that are ideally suited to the unique needs of a number of industry markets. They range in size from .7 GPM up to 10.5 GPM. The valves are available in 2, 3, and 4 way flow functions with solenoid and pilot actuators. H Series valves can be applied as a single station unit or incorporated into a custom made manifold unit that is designed to meet the needs of the application.
For more information about this product…
Download a Catalog

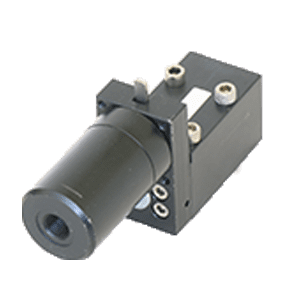

K Series
Versa’s K Series valve system combines compact design and stacking modular manifolds with easy maintenance.
K 6, 5 and 4.7 valves mount interchangeably on the Series K stacking modular manifold.
For more information about this product…
Download a Catalog
