Sinclair Collins – A Parker Company
Valves
Sinclair Collins has been setting the standards for control valves used on industrial processes for over 50 years. The diaphragm operated design gives them the ability to be used as steam valves, modulating control valves, two-pressure hydraulic control valves, pressure regulating, and pressure relief valves. These valves are perfect for high pressure service, hot and cold water, air, and inert gas service. You can use their control modules for maintaining and balancing the air pilot signals. They also offer high pressure check valves.
Product Lineup
K Series Process Control Valves
The rugged design and reliability of the K Series valves make them ideally suited for a variety of applications requiring the control of steam, gas, liquids or chemicals. All components must meet our high performance specifications and quality control standards.
- Actuator is field reversible, air to open, air to close
- Rolling style diaphragm provides uniform thrust
- Three actuator sizes: 37, 64, 135. Maximum 35 PSI on 37 and 64 sizes; maximum 25 PSI on 135 size.
- Stem diameter 7/16″
- Stem travel (stroke) 0.75″ all sizes
- Multi-spring, low-profile actuators offer a 12 PSI control band. Other options available.
- 100% nitrogen gas tested
- Hard seat meets Class IV leakage standards
Bronze Construction
- Maximum media pressure = 250 PSI (2″ valve maximum = 230 PSI)
- Body sizes 1/2″, 3/4″, 1″, 1¼”, 1½”, 2″
- -40°F to 400°F (-40°C to 204°C) maximum temperature
Stainless Steel Construction
- 300# Class stainless steel body per ANSI B16.34
- Body sizes 1/2″, 1″, 1½”, 2″
- -40°F to 450°F (-40°C to 232°C) temperature range.
Accessories
- Pneumatic Positioner
- I/P Transducer
- Air Preparation Unit
For more information about this product…
Download a Catalog
M Series Process Control Valves
- Actuator is field reversible, air to open, air to close
- Rolling style diaphragm provides uniform thrust
- Two actuator sizes: 37, 64. Maximum 35 PSI. Actuator to be vented to 0 PSI for shutoff.
- Stem diameter 7/16″
- Stem travel (stroke) 0.75″ all sizes
- Multi-spring, low-profile actuators offer a 12 PSI control band. Other options available.
- 100% nitrogen gas tested
- Hard seat meets Class IV leakage standards
- Valves are factory calibrated for maximum operating pressure and 100% tested.
Bronze Construction
- Body sizes 1/2″, 3/4″, 1″, 1¼”, 1½”, 2″
- -40°F to 400°F (-40°C to 204°C) maximum temperature
Stainless Steel Construction
- Body sizes 1/2″, 1″, 1½”, 2″
- -40°F to 450°F (-40°C to 232°C) media temperature range.
For more information about this product…
Download a Catalog
HP Series High Pressure Process Control Valves
Sinclair Collins® 3-Way Two-Pressure Hydraulic Control Valves are widely used in press operations or in other similar applications where low and high operating pressures are employed. Diaphragm-operated, they may be actuated by manually, electrically or mechanically operated air valves. They are designed to control two pressure systems where the low pressures range from 50 to 2000 psi and high pressures up to 3500 psi.
more info…
For more information about this product…
Download a Catalog
SC2000 Series Check Valves
Stainless Steel, 500 PSI
- Simple 3-Piece design
- Piston type stem
- Investment cast 316 stainless steel body
- Cast arrow on body indicates flow direction
For more information about this product…
Download a Catalog
SC2000 Series Process Control Valves
Stainless Steel, 400 PSI
Diaphragm-operated valves provide a simple and effective means of achieving automatic control of fluid media in manufacturing processes. These valves are used extensively to control steam, hot and cold water and vacuum on automatic presses used to cure tires, V-belts and other rubber and plastic products. They are used to control steam in applications where constant temperature must be maintained to keep materials fluid for processing, molding or curing.
The unique design and reliable peformance of the SC2000 Series Process Control Valves make them ideally suited for various process applications. These rugged cylinder-actuated stainless steel valves are designed for a bubble- tight seal. Their slimmer shape enables them to fit into applications where space is a consideration. Additional flexibility is provided by the choice of inline or flange mounting.
- Sizes: 1/2″, 3/4″, 1″, 1 1⁄2″
- Media: Steam, hot or cold water, air and inert gas
- MaximumOperatingPressure: 400 PSI (28 Bar)
- ActuatorPressureRange: 35-120 PSI (2.4-8.3 Bar)
- TemperatureRange: -40° to 450°F (-40° to 232°C)
- Two & three-way operation.
- Cv=3.7 to 23.5 (Port 1 to 2)
- Maximum operating pressure 400 PSI (28 Bar)
- 316 stainlesssteel body
- Upper seat is machined into the body
- Exclusive Dura-Seat designed stainless steel filled PTFE seat material gives a bubble-tight seal.
- Cylinder actuator is 303 stainless steel with a floating anodized aluminum piston and a uniquely-designed, air-energized U-ring.
- Cylinder operator pressure range: 35-120 PSI (2.4 to 8.3 Bar)
- Actuator spring has high temperature coating for corrosion resistance.
- Inline or flange mounting. Flanges available in ANSI, DIN and JIS styles.
- Dual bearing guided stem.
- Stem seals are designed for high performance utilizing spring loaded, stainless steel filled PTFE materials.
- Temperature range: -40° to 450°F (-40° to 232°C)
- 2-Way Normally Open
For more information about this product…
Download a Catalog

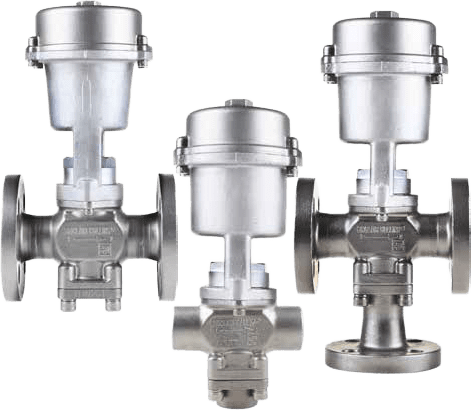

SC2100 Series Process Control Valves
Stainless Steel, 460 PSI
Diaphragm-operated valves provide a simple and effective means of achieving automatic control of fluid media in manufacturing processes. These valves are used extensively to control steam, hot and cold water and vacuum on automatic presses used to cure tires, V-belts and other rubber and plastic products. They are used to control steam in applications where constant temperature must be maintained to keep materials fluid for processing, molding or curing.
The unique design and reliable peformance of the SC2000 Series Process Control Valves make them ideally suited for various process applications. These rugged cylinder-actuated stainless steel valves are designed for a bubble- tight seal. Their slimmer shape enables them to fit into applications where space is a consideration. Additional flexibility is provided by the choice of inline or flange mounting.
- Sizes: 1/2”, 3/4”, 1”. 1-1/2”
- Media: Steam, hot or cold water, air and inert gas
- Max. Operating Pressure: 460 PSI (32 Bar)
- Actuator Pressure Range: 37-51 PSI (2.5-3.5 Bar)
- Temperature Range: -40 ˚F to 450 ˚F (-40 ˚C to 232 ˚C)
- Two and three-way operation
- Cv = 3.7 to 23.5 (Port 1 to 2)
- Maximum operating pressure 460 PSI (32 Bar)
- 316/304 stainless steel body
- Cylinder operator pressure range: 37-51 PSI(2.5 to 3.5 Bar)
- Pilot port: PT 1/4″
- Stainless Steel cylinder cover for corrosion resistance providing longer piston seal life
- Unique self-centering piston eliminates misalignment providing longer piston seal life
- Actuator spring has high temperature coating for corrosion resistance
- Inline or flange mounting. Flanges available in ANSI, DIN and JIS styles
- Dual bearing guided stem
- Stem seals are designed for high performance Utilizing spring loaded, Carbon filled PTFE materials
- 4 bolt bottom cap design allows for easier flange mounting (orientation) in port 3
- Temperature range: -40 ˚F to 450˚F (-40 ˚C to 232 ˚C)
For more information about this product…
Download a Catalog

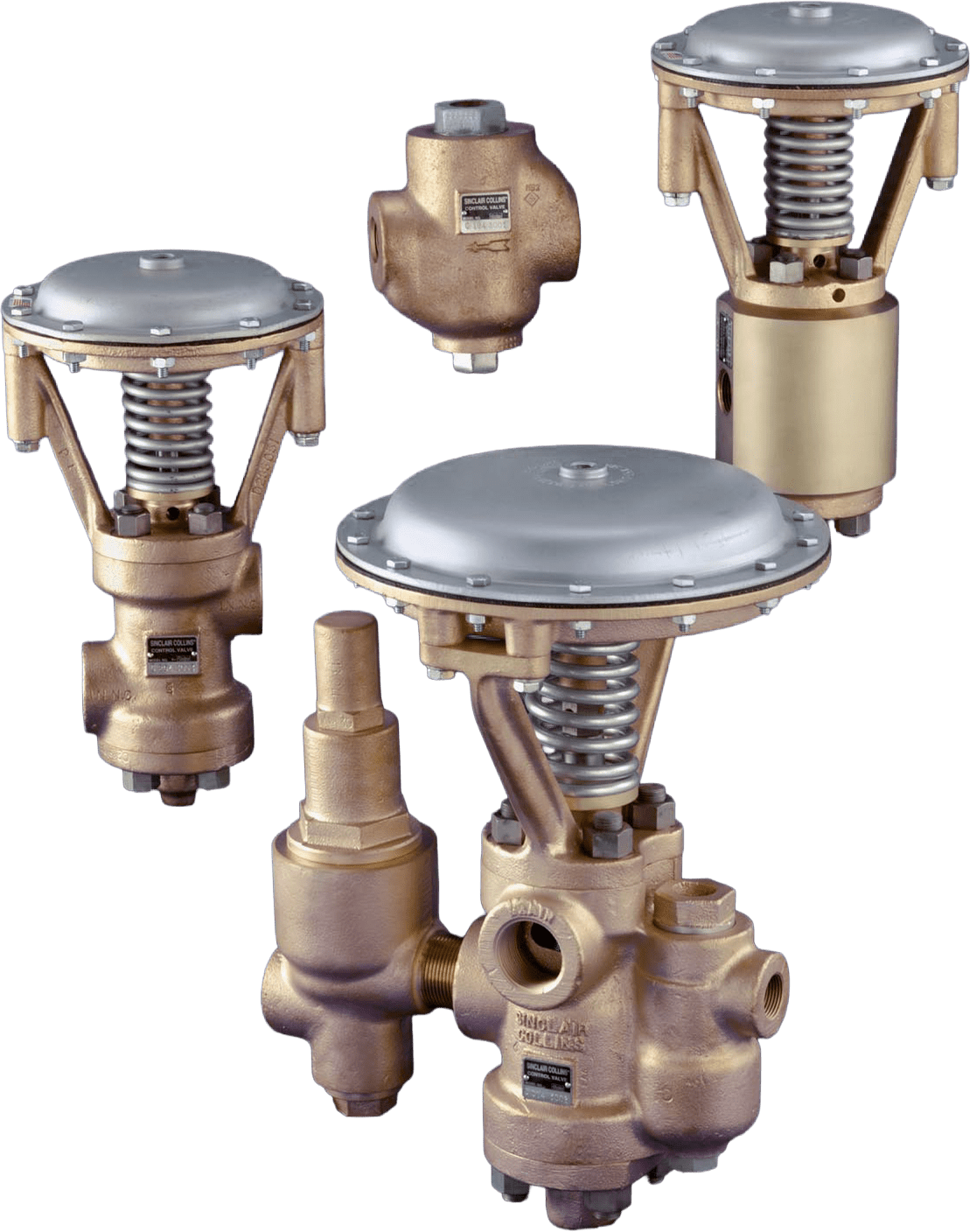

SCV-3 Series Process Control Valves
2 & 3-Way Valves – Diaphragm Operated
Sinclair Collins® High Pressure Valves are available in 2-way normally-open or normally-closed, and 3-way types in two pressure classes – 4000 psi and 6000 psi. Valves for 4000 psi services have cast bodies of high quality ASTM-B61 bronze and are available in sizes ranging from 1/2″ through 3″. Bodies for 6000 pi valves are machined from aluminum bronze billets. These valves are available in 1/2″ through 2″ sizes. All valves are normally equipped with seals that are suitable for use with water and petroleum base fluids; however, seals for use with phosphate ester base fluids and other services are available on special order.
For more information about this product…
Download a Catalog

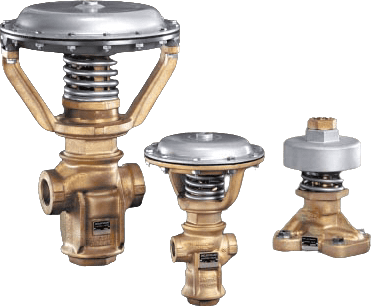

SCV-100 Series Process Control Valves
For Steam, Hot and Cold Liquids -40° to 450°F up to 500 psi
These valves are designed for low pressure service and where compactness is desired. The stem and disc are machined from a single piece of stainless steel. Seat rings are stainless steel and are of drop-in variety. The upper seat which is of cage design, also serves as a diverter to help direct the flow through the valve. The stem packing consists of a single ring of glass reinforced PTFE with an integrally confined spring to eliminate the need for manual adjustments of packing. Because only one seal is used, the cavity for the seal in the body is shallow and the stem bearing length is correspondingly longer. A spiral wound gasket consisting of stainless steel and filler material is utilized to seal the upper seat.
For more information about this product…
Download a Catalog
Modulating Valves
On/Off Valves
