Vacuum Pumps

Vaccon’s air-powered venturi vacuum pumps are highly efficient, with a variety of options for applications like:

Pick & Place
Material Handling
End-Of-Arm Tooling/Robotics
Automated Assembly
Process Control
Vacuum Clamping/Holding
Packaging

Bagging
Bag/Box Opening/Folding
Filling/Bottling Operations
Palletizing
Sheet Feeders
Food Processing
Medical/Pharmaceutical

Semiconductor
Integrated Circuits
High Temperature Applications
Caustic Applications
Liquid Transfer
Gas Sampling And Analysis
Vacuum Forming

Modular Venturi Vacuum Pumps – Min Series

In keeping pace with industry’s need for improved automation and material handling methods, we offer the VP Series Modular Venturi Vacuum Pump. The VP Series provides maximum design flexibility by using a modular component approach. Integrating a venturi vacuum pump, sensors, and solenoid valves within one assembly, the VP Series provides complete vacuum systems capable of interfacing with computerized control systems.

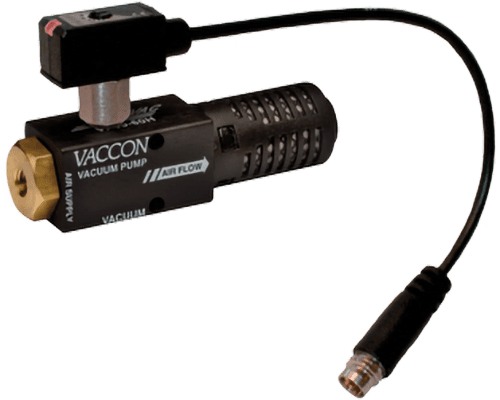

VP00 Series – Min Series Venturi Vacuum Pump with Silencer

Vaccon VP00 Series – Min Series Venturi Vacuum Pump with Silencer
Designed for point-of-use installation

The VP00 Series vacuum pumps offer high vacuum in several compact, lightweight configurations that are ideal for small part pick and place applications. Other common applications include fast evacuation of small vessels for purging operations and water/air analyzers. These compact pumps require little installation space and can be positioned close to the vacuum point for fast response.

  • High Productivity – powerful vacuum up to 28”Hg [948mbar]
  • Mounts Easily – square body, compact and lightweight
  • Fast Response – installs close to vacuum point
  • Efficient – minimal air consumption
  • Reliable – operates trouble-free:
    • Straight-through design, non-clogging
    • No moving parts to wear or clog
    • No flap valves to stick open
    • No maintenance
    • No downtime

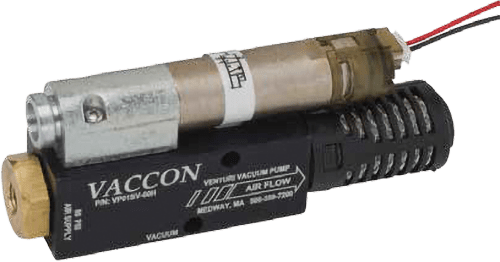

VP01BV Series – Min Series Venturi Vacuum Pump with Integral Solenoid Valve and Silencer

Vaccon VP01BV Series – Min Series Venturi Vacuum Pump with Integral Solenoid Valve and Silencer

VP01BV Min Series pumps are solenoid-controlled miniature venturi vacuum pumps that generate vacuum only when needed, minimizing compressed air consumption. The integral solenoid valve provides instantaneous response for high speed assembly and pick and place applications.

  • High productivity – Cycle rates up to 4800/min for fast part release
  • Minimal air consumption – provides instantaneous vacuum as needed
  • Reliable part detection – factory-installed miniature vacuum switches or sensors
  • Fast Response – installs close to vacuum point – no delay due to long plumbing lines
  • Easy installation – modular design speeds installation and minimizes assembly
  • Reliable – operates trouble-free:
    • Straight-through design, non-clogging
    • No moving parts to wear or clog
    • No maintenance
    • No downtime

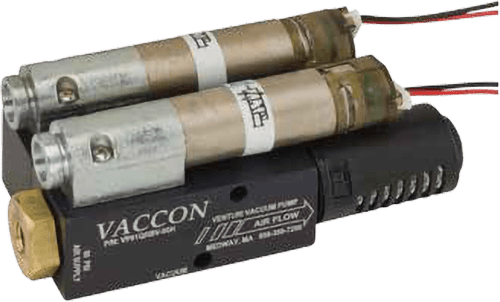

VP01QRBV Series – Min Series Venturi Vacuum Pump with Solenoid Operated Vacuum and Blow-off

Vaccon VP01QRBV Series – Min Series Venturi Vacuum Pump with Solenoid Operated Vacuum and Blow-off

The VP01QRBV Min Series are solenoid-controlled miniature venturi vacuum pumps that feature a second solenoid to control blow-off air for rapid part release. The integral vacuum and blow-off circuit design provides instantaneous response for high speed assembly and pick and place applications. The blow-off is at line pressure, and is internally plumbed so that only one air and vacuum line is required.

  • Precise control – individual electrical connections let you control the vacuum and the blow-off duration time
  • Fast response – no delay due to long plumbing lines; installs close to vacuum point
  • Instantaneous vacuum as needed – minimal air consumption
  • Productivity – fast part release with high cycle rates up to 4800/min
  • Easy installation – modular design speeds installation and minimizes assembly
  • Reliable – operates trouble-free:
    • No moving parts to wear or clog
    • No maintenance
    • No downtime

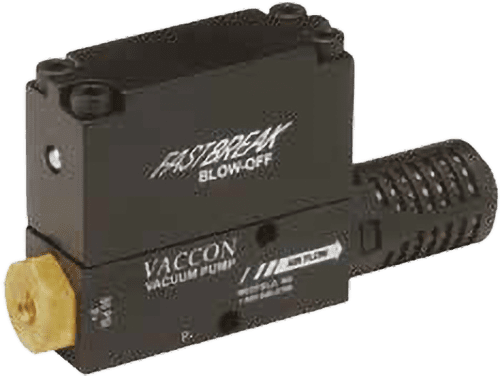

VP0X Series & VP0X-ADJ Series – Miniature Venturi Vacuum Pump with Pneumatic Blow-off and Silencer

Vaccon VP0X Series & VP0X-ADJ Series – Miniature Venturi Vacuum Pump with Pneumatic Blow-off and Silencer
No electricity required.

The VP0X & VP0X-ADJ air-powered venturi vacuum pumps are trusted for accurate part placement and rapid part release. The reliable Fastbreak Min Series provides both vacuum and blow-off in one pump, using only one compressed air line.

  • Fast Response – compact, lighweight, and installs close to vacuum point
  • Trouble-free operation:
    • Straight-through design, non-clogging
    • No moving parts to wear or clog
    • No flap valves to stick open
    • Automatically cleans vacuum lines
    • No downtime
  • High productivity – rapid part release, cycle rates up to 900/min
  • Modular design – add vacuum sensors and solenoid valves to create a complete vacuum system
  • Reliable part detection – factory installed miniature vacuum switches or sensors

Modular Venturi Vacuum Pumps – Mid Series

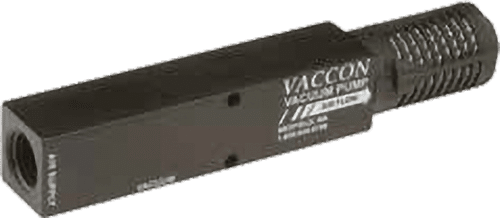

VP10 Series Venturi Vacuum Pump with Interchangeable Cartridges and Silencer

Vaccon VP10 Series Venturi Vacuum Pump with Interchangeable Cartridges and Silencer

Compact and lightweight, the VP10 Series is designed for versatile performance in limited space applications.

  • Customize your pump performance with interchangeable venturi cartridges
  • Safe operation – high flow, strong holding force
  • High productivity – powerful vacuum up to 28”Hg [948mbar]
  • Compact & lightweight – modular design speeds installation
  • Efficient – minimal air consumption
  • Reliable – trouble-free operation:
    • Straight-through design, non-clogging
    • No moving parts to wear or clog
    • No flap valves to stick open
    • No maintenance
    • No downtime

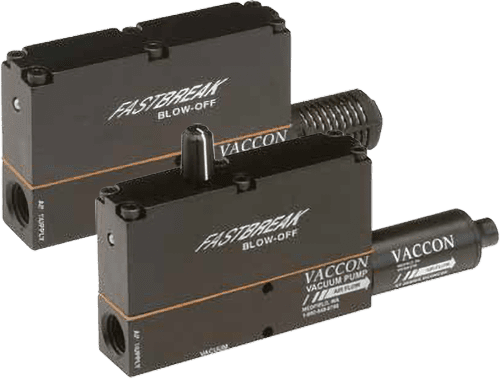

VP1X Series Venturi Vacuum Pump with Pneumatic Blow-Off and Silencer

Vaccon VP1X Series Venturi Vacuum Pump with Pneumatic Blow-Off and Silencer

FASTBREAK vacuum pumps with high speed blow-off are ideal for pick & place applications that require accurate placement and rapid release.

  • Fast Response – compact, lighweight, and installs close to vacuum point
  • Trouble-free operation:
    • Straight-through design, non-clogging
    • No flap valves to stick open
    • Automatically cleans vacuum lines
    • No downtime
  • High productivity – rapid part release, cycle rates up to 900/min
  • Modular design – add vacuum sensors and solenoid valves to create a complete vacuum system
  • Reliable part detection – factory installed miniature vacuum switches or sensors

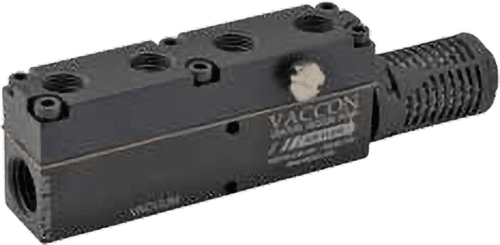

VP10-MP Series Multi-port Venturi Vacuum Pumps with Silencers

Vaccon VP10-MP Series Multi-port Venturi Vacuum Pumps with Silencers

The VP10-MP Series provides the flexibility of the VP10 Modular design with an integral 4-Port vacuum manifold.

  • High performance – vacuum up to 28”Hg [948mbar]
  • High production – fast cycle times with shot to shot consistency
  • High flow – maintains strong holding force, overcomes leakage
  • Home Run plumbing – saves compressed air
  • Easy mounting – fractional and metric
  • T-slot compatible
  • Time saving – pre-designed, factory assembled, quick installation
  • Safe operation – no electricity needed at pump
  • Reliable – non-clogging, trouble-free operation

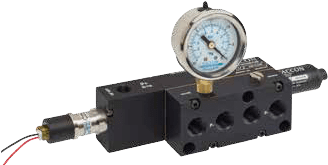

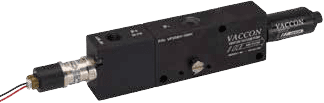

VP20/VP20BV Series Venturi Vacuum Pump with Interchangeable Cartridges and Silencer

Vaccon VP20/VP20BV Series Venturi Vacuum Pump with Interchangeable Cartridges and Silencer

Our most popular & versatile model, the VP20 offers a variety of options in a compact size. Available with optional integral solenoid valve.

  • Customize your pump performance with interchangeable venturi cartridges
  • Safe operation – high flow, overcomes leakage providing a strong holding force
  • Mounts easily – square body, compact and lighweight
  • High productivity – powerful vacuum up to 28”Hg [948mbar]
  • Fast response – installs close to vacuum point
  • Reliable – trouble-free operation:
    • Straight-through design, non-clogging
    • No moving parts to wear or clog
    • No flap valves to stick open
    • No maintenance
    • No downtime

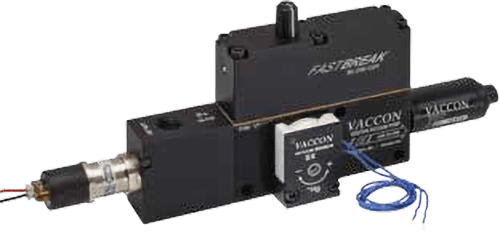

VP2X/VP2XBV Series Venturi Vacuum Pump with Pneumatic Blow-off and Silencer

Vaccon VP2X/VP2XBV Series Venturi Vacuum Pump with Pneumatic Blow-off and Silencer

FASTBREAK vacuum pumps with high speed blow-off are ideal for pick & place applications. Available with optional integral solenoid valve.

  • Fast Response – Compact, lighweight, and installs close to vacuum point
  • Trouble-free operation:
    • Straight-through design, non-clogging
    • No flap valves to stick open
    • Automatically cleans vacuum lines
    • No downtime
  • High productivity – Rapid part release, cycle rates up to 900/min
  • Modular design – Add vacuum sensors and solenoid valves to create a complete vacuum system
  • Multiple functions from just one PLC output – Requires fewer outputs, less costly, easy to program
  • Reliable part detection – Factory installed miniature vacuum switches or sensors
VP20-MP/VP20BV-MP Series Multi-Port Venturi Vacuum Pumps with Silencers and Optional Solenoid Valve/Control

Vaccon VP20-MP/VP20BV-MP Series Multi-Port Venturi Vacuum Pumps with Silencers and Optional Solenoid Valve/Control

Provides the flexibility of the VP20 Modular design with an integral 4-Port vacuum manifold. Available with optional integral valve.

  • High performance – vacuum up to 28”Hg [948mbar]
  • High production – fast cycle times with shot to shot consistency
  • High flow – maintains strong holding force, overcome leakage
  • Home Run plumbing – saves compressed air
  • Easy mounting – fractional and metric T-slot compatible
  • Time saving – pre-designed, factory assembled, quick installation
  • Safe operation – no electricity needed at pump
  • Reliable – non-clogging, trouble-free operation

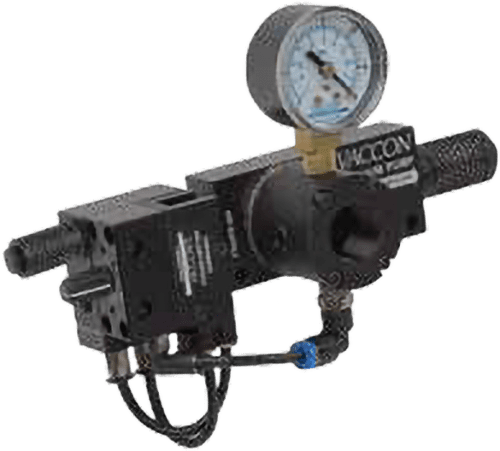

VP20-AS Series VP Pumps with Air Saver Technology

Vaccon VP20-AS Series VP Pumps with Air Saver Technology
On-Demand Vacuum – Saves Air – Safe Operation – No Electricity

Vaccon’s Air Saver Pumps are an all-pneumatic system that minimizes compressed air usage by creating, monitoring and maintaining vacuum for safe, energy efficient operations.

  • Powerful vacuum up to 28”Hg [948mbar] – rapid evacuation
  • Energy efficient – compressed air on only when needed, automatic shut-off
  • Intrinsically safe to operate – all pneumatic – no electricity required
  • High vacuum flows provide dependable vacuum holding force
  • Reliable – trouble-free operation:
    • No moving parts to wear or clog
    • No maintenance
    • No downtime
    • Quiet

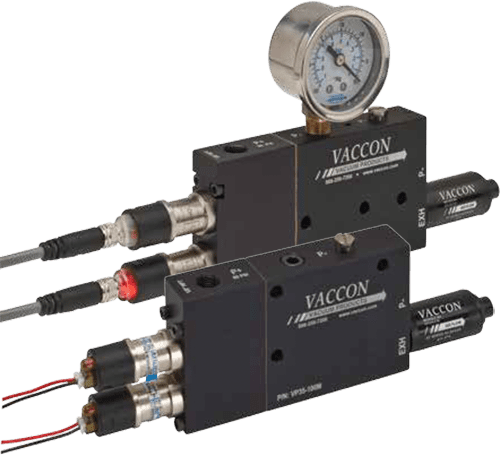

VP35 Series Venturi Vacuum Pump with Solenoid Operated Vacuum and Blow-off

Vaccon VP35 Series Venturi Vacuum Pump with Solenoid Operated Vacuum and Blow-off

VP35 Series are solenoid controlled and feature a second solenoid to control blow-off air for rapid part release.

  • Precise control – individual electrical connections let you control the vacuum and the blow-off duration time
  • Instantaneous vacuum as needed – minimal air consumption
  • High Productivity – fast part release with cycle rates up to 2700/min
  • Accurate part positioning from positive vacuum and rapid blow-off
  • Easy installation – modular design speeds installation and minimizes assembly
  • Fast response – no delay due to long plumbing lines; installs close to vacuum point
  • Reliable, trouble-free operation:
    • No moving parts to wear
    • No maintenance
    • No downtime

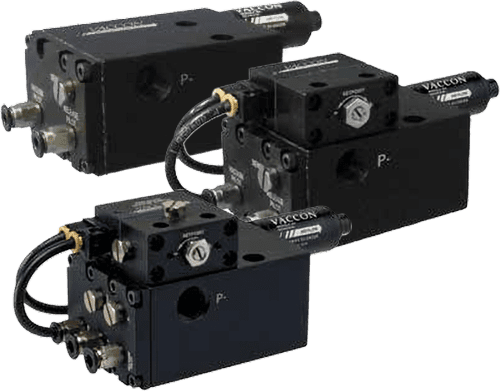

VP50 All Pneumatic Pilot Controlled (no electricity)

Vaccon VP50 All Pneumatic Pilot Controlled (no electricity)

VP50 Series All Pneumatic Pilot Controlled pumps feature an integral check valve, air saver technology, and air pilot controlled blow-off.

  • Compact, lightweight design
  • All pneumatic – no electric power required
  • Precise control – individual pneumatic connections let you control the vacuum and the blow-off duration time
  • Instantaneous vacuum as needed – minimal air consumption
  • Accurate part positioning from positive vacuum and rapid blow-off
  • Easy installation – modular design speeds installation and minimizes assembly
  • Fast response – installs close to vacuum point reducing delay due to long plumbing lines
  • Reliable, trouble-free operation:
    • No maintenance
    • No downtime
RTM Series – Multi-stage Replacement Venturi Vacuum Pumps

Vaccon RTM Series – Multi-stage Replacement Venturi Vacuum Pumps

The RTM Series pumps are a direct replacement for failed or clogged multi-stage pumps to maximize productivity and minimize downtime.

  • Customize your pump performance with interchangeable venturi cartridges
  • Safe operation – no electricity required at pump
  • Easy mounting – fractional and metric T-slot compatible
  • Economical – efficient air consumption
  • Fast response – installs close to vacuum point
  • Reliable – trouble-free operation:
    • Straight-through design, non-clogging
    • No moving parts to wear or clog
    • No flap valves to stick open
    • No maintenance
    • No downtime
Vac-Stac Series Modular Venturi Vacuum Pump

Vaccon Vac-Stac Series Modular Venturi Vacuum Pump

The Vac-Stac Series is the quickest and most efficient way to integrate air and vacuum in one compact unit. Specifically made for ISO 5599/1 Size-1 directional control valves.

  • Customize your pump performance with interchangeable venturi cartridges
  • Safe operation – no electricity required at pump
  • Economical – efficient air consumption
  • Fast response – installs close to vacuum point
  • Reliable – trouble-free operation:
    • Straight-through design, non-clogging
    • No moving parts to wear or clog
    • No flap valves to stick open
    • No maintenance
    • No downtime

Modular Venturi Vacuum Pumps – Max Series

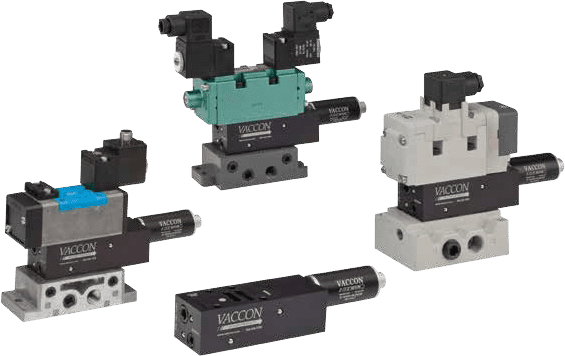

Valve-Controlled Venturi Vacuum Pumps

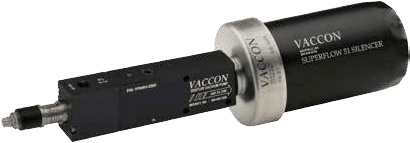

VP80-200/VP80BV-200 Series Venturi Vacuum Pump with Silencer

Vaccon VP80-200/VP80BV-200 Series Venturi Vacuum Pump with Silencer

Designed for Flow – The VP80 Max Series air-powered venturi vacuum pumps provide high vacuum flow rates for the rapid evacuation of large volumes of air or for overcoming leakage in order to sustain high vacuum levels while handling porous materials. Available with integrated valve.

  • High performance – powerful vacuum up to 28”Hg [948mbar]
  • Compact & lightweight, rugged body construction
  • Fast response – mounts close to vacuum point
  • Efficient – minimal air consumption
  • Safe operation:
    • No electricity needed at the pump
    • High flow overcomes leakage – maintains a strong holding force
  • Reliable – trouble-free operation:
    • Straight-through design, non-clogging
    • No moving parts to wear or clog
    • No flap valves to stick open
    • No maintenance
    • No downtime
VP80-250/VP80BV-250 Series Venturi Vacuum Pump with Silencer

Vaccon VP80-250/VP80BV-250 Series Venturi Vacuum Pump with Silencer

The VP80-250 Max Series air-powered venturi vacuum pumps provide an even higher vacuum flow rate for larger evacuation applications or porous material handling operations. Available with integrated valve.

  • High performance – powerful vacuum up to 28”Hg [948mbar]
  • Compact & lightweight, rugged body construction
  • Fast response – mounts close to vacuum point
  • Efficient – minimal air consumption
  • Safe operation:
    • No electricity needed at the pump
    • High flow overcomes leakage – maintains a strong holding force
  • Reliable – trouble-free operation:
    • Straight-through design, non-clogging
    • No moving parts to wear or clog
    • No flap valves to stick open
    • No maintenance
    • No downtime
VP90-300/350 Series Venturi Vacuum Pump with Silencer

Vaccon VP90-300/350 Series Venturi Vacuum Pump with Silencer

Max Performance – Highly efficient, capable of reaching 28”Hg [948mbar], with flow rates up to 28 SCFM [793 LPM], the VP90’s are also dirt tolerant. The standard FA-51 silencer also makes the VP90 Series whisper quiet.

  • High performance – powerful vacuum up to 28”Hg [948mbar]
  • Compact & lightweight, rugged body construction
  • Fast response – mounts close to vacuum point
  • Efficient – minimal air consumption
  • Safe operation:
    • No electricity needed at the pump
    • High flow overcomes leakage –
      maintains a strong holding force
  • Reliable – trouble-free operation:
    • Straight-through design, non-clogging
    • No moving parts to wear or clog
    • No flap valves to stick open
    • No maintenance
    • No downtime
VP8X/VP8XBV Series – Venturi Vacuum Pump with Pneumatic Blow-off and Silencer

Vaccon VP8X/VP8XBV Series – Venturi Vacuum Pump with Pneumatic Blow-off and Silencer

The reliable VP8X & VP8X-ADJ Fastbreak Max Series provides both vacuum and blow-off in one pump, using only one compressed air line. No electricity required. Available with integrated valve.

  • Fast Response – compact, lighweight, and installs close to vacuum point
  • Trouble-free operation:
    • Straight-through design, non-clogging
    • No flap valves to stick open
    • Automatically cleans vacuum lines
    • No downtime
  • High productivity – rapid part release, cycle rates up to 900/min
  • Modular design – add vacuum sensors and solenoid valves to create a complete vacuum system
  • Multiple functions from just one PLC output – requires fewer outputs, less costly, easy to program
  • Reliable part detection – factory installed miniature vacuum switches or sensors
VP80/VP80BV-MP & VP90-MP Series Multi-port Venturi Vacuum Pumps with Silencers

Vaccon VP80/VP80BV-MP & VP90-MP Series Multi-port Venturi Vacuum Pumps with Silencers

The VP80/90-MP Series pumps provide the power of Vaccon’s Max Series with integral 4 or 6 Port vacuum manifolds and glycerine filled vacuum gauges. VP80-MP Series available with integrated valve.

  • High performance – vacuum up to 28”Hg [948mbar]
  • High production – fast cycle times with shot to shot consistency
  • High flow – maintains strong holding force, overcome leakage
  • Home Run plumbing – saves compressed air
  • Easy mounting – fractional and metric T-slot compatible
  • Time saving – pre-designed, factory assembled, quick installation
  • Safe operation – no electricity needed at pump
  • Reliable – non-clogging, trouble-free operation
VP80-200/250-AS, VP90-300/350-AS Vacuum Pumps with Air Saver Technology

Vaccon VP80-200/250-AS, VP90-300/350-AS Vacuum Pumps with Air Saver Technology

Vaccon’s Air Saver Pumps are an all-pneumatic system that minimizes compressed air usage by creating, monitoring and maintaining vacuum for safe energy efficient operations. The VP90-300 and 350 Max Series Air Saver Pumps provide high vacuum flow rate for applications involving moderately porous materials, or material with a rough, uneven sealing surface, such as plywood.

  • Powerful vacuum up to 28”Hg [948mbar] – rapid evacuation
  • Energy efficient – compressed air on only when needed, automatic shut-off
  • Intrinsically safe to operate – all pneumatic – no electricity required
  • High vacuum flows provide dependable vacuum holding force
  • Reliable – trouble-free operation:
    • No moving parts to wear or clog
    • No maintenance
    • No downtime
    • Quiet
VP92 Series – Valve Controlled Venturi Vacuum Pump

Vaccon VP92 Series – Valve Controlled Venturi Vacuum Pump

High Flow – Solenoid controlled, designed to interface directly on a MAC 92 Series Sub Base. Integral valve control for vacuum blow-off for rapid part release. Interchangable threaded venturi cartridges – 3 different performance levels.

  • Direct MAC 92 Series Sub Base interface
  • High Speed integral 2-way direct acting valves
  • Precise control- indivdual electrical connections let you control the vacuum and the blow-off duration time
  • Instantaneous vacuum as needed – minimal air consumption
  • Easy installation – modular design speeds installation and minimizes assembly
  • Reliable, trouble-free operation:
    • No moving parts to wear
    • No maintenance
    • No downtime

High Vacuum Venturi Pumps

Vaccon offers a High Vacuum Venturi Pump in a variety of performance ranges. Each HighVac Series Pump is capable of 29.5”Hg [999mbar] at sea level.

HVP Series – High Vacuum Venturi Pump with Silencer

Vaccon HVP Series – High Vacuum Venturi Pump with Silencer
up to 29.5”Hg [999mbar]

The high vacuum level and compact size of the HVP pump allows you to incorporate smaller and more efficient components in your design. Often used to replace expensive, noisy, heat generating electric pumps, HVP pumps are quiet and maintenance free, ideal for small shops, labs and recharging HVAC systems.

  • High performance – powerful vacuum up to 29.5”Hg [999mbar]
  • Fast response time – no delay due to long plumbing lines; mounts in-line and installs close to vacuum point
  • Efficient – minimal air consumption
  • Compact, lightweight and modular – easy to install
  • Safe operation – no electricity needed at the pump
  • Reliable, trouble-free operation:
    • No moving parts to wear
    • No flap valves to stick open
    • No maintenance
    • No downtime

J-Series Cylindrical Venturi Pumps

The J-Series Venturi Vacuum Pumps utilize a fixed cartridge venturi design. J-Series pumps employ a cylindrical design for ease of installation and mounting into in-line pneumatic plumbing. J-Series pumps offer a complete range of venturi vacuum performance.

Ultra-Miniature Cylindrical Venturi Vacuum Pump

Vaccon Ultra-Miniature Cylindrical Venturi Vacuum Pump

The JS-40UM (Ultra-Mini) cylindrical venturi vacuum pump is the smallest complete venturi vacuum pump that Vaccon offers. Incredibly compact and powerful – it measures the size of your finger tip and generates up to 27”Hg [914mbar]. Lightweight, quiet and cool operating, JS-40UM pumps are ideal for confined spaces, where they can be mounted in-line near the point
of use for rapid response.

  • High performance – powerful vacuum up to 27”Hg [914mbar]
  • Lightweight – less than 1 oz. [28.3g]
  • Compact – 1.45” x .56”OD [36.83mm x 14.22 mm OD]
  • Input pressure from 5 PSI [0.34 bar]
  • Fast response – Mounts in-line, and installs close to vacuum point – no delay due to long plumbing lines
  • Efficient – Minimal air consumption, provides instantaneous vacuum as needed
  • Safe operation – No electricity needed
  • Reliable, trouble-free operation:
    • No moving parts to wear
    • No flap valves to stick open
    • No maintenance
    • No downtime
Min J-Series Cylindrical Venturi Vacuum Pumps

Vaccon Min J-Series Cylindrical Venturi Vacuum Pumps
Compact Design

The J-Series “M” (Mini) version cylindrical venturi vacuum pumps feature a high power-to-size ratio, measuring only 3” L x 3/4” OD. Choose from 11 models that can generate up to 28”Hg [948mbar] and 3.5 SCFM [99 LPM] of vacuum flow. Lightweight, quiet and cool operating, J-Series pumps are ideal for confined spaces, where they can be mounted in-line near the point of use for rapid response.

  • High Performance – powerful vacuum up to 28”Hg [948mbar]
  • Durable – rugged aluminum body construction
  • Fast response – mounts in-line, close to vacuum point – no delay due to long plumbing lines
  • Efficient – minimal air consumption, provides instantaneous vacuum as needed
  • Safe operation – no electricity needed
  • Reliable, trouble-free operation:
    • No moving parts to wear
    • No flap valves to stick open
    • No maintenance
    • No downtime
Mid Sized J-100/150/200/250 Series Cylindrical Venturi Vacuum Pumps

Vaccon Mid Sized J-100/150/200/250 Series Cylindrical Venturi Vacuum Pumps

The J-100 and J-150 models offer the same performance as their sister pumps, the J-100M and J-150M on page 6.6, but with larger ports. The J-200 and 250’s offer higher vacuum flows for rapid evacuation of large vessels and to overcome leakage to sustain high vacuum levels while handling porous materials.

  • High performance – powerful vacuum up to 28”Hg [948mbar]
  • Durable – rugged aluminum body construction
  • Compact & lightweight – easily fits in confined spaces
  • Fast response – Mounts in-line, close to vacuum point – no delay due to long plumbing lines
  • Efficient – Minimal air consumption, provides instantaneous vacuum as needed
  • Safe operation – No electricity needed
  • Reliable, trouble-free operation:
    • No moving parts to wear
    • No flap valves to stick open
    • No maintenance
    • No downtime
Max Sized J-300 Series Cylindrical Venturi Vacuum Pumps

Vaccon Max Sized J-300 Series Cylindrical Venturi Vacuum Pumps

Max Performance

The J-300 Series cylindrical venturi vacuum pumps offer higher vacuum flows for rapid evacuation of large vessels and to overcome leakage to sustain high vacuum levels while handling porous materials.

  • High performance – powerful vacuum up to 28”Hg [948mbar]
  • Durable – rugged aluminum body construction
  • Fast response – Mounts in-line, and installs close to vacuum point
  • Efficient – Minimal air consumption, provides instantaneous vacuum as needed
  • Safe operation – No electricity needed
  • Reliable, trouble-free operation:
    • No moving parts to wear
    • No flap valves to stick open
    • No maintenance
    • No downtime
Max Sized J-350 Series Cylindrical Venturi Vacuum Pumps

Vaccon Max Sized J-300 Series Cylindrical Venturi Vacuum Pumps

Max Performance

The J-350 Series cylindrical venturi vacuum pumps offer higher vacuum flows for rapid evacuation of large vessels and to overcome leakage to sustain high vacuum levels while handling porous materials.

  • High performance – powerful vacuum up to 28”Hg [948mbar]
  • Durable – rugged aluminum body construction
  • Fast response – Mounts in-line, and installs close to vacuum point
  • Efficient – Minimal air consumption, provides instantaneous vacuum as needed
  • Safe operation – No electricity needed
  • Reliable, trouble-free operation:
    • No moving parts to wear
    • No flap valves to stick open
    • No maintenance
    • No downtime
J-Series Liquid Powered Venturi Vacuum Pumps

Vaccon J-Series Liquid Powered Venturi Vacuum Pumps

As the name suggests, Liquid J-Series pump can be powered by liquid.These pumps generate vacuum levels up to 29.5”Hg [990mbar] at pressures as low as 45 PSI [3.1 Bar]. Generating near perfect vacuum, liquid powered J-Series pumps are recommended for degassing, reverse osmosis water columns, mixing liquids with fruit juice concentrates or chemicals for dilution, blending liquids and slurries, extracting solvents, producing emulsions, elevating water, cleaning liquid transfer lines, evacuating liquids from wells or sumps and to circulate pump solutions.

  • High Performance – powerful vacuum up to 29.5”Hg [990mbar]
  • Instantaneous response
  • Constant vacuum flow
  • Consistent smooth transference
  • Safe operation – no electricity needed
  • Customized configurations available
  • Reliable, trouble-free operation:
    • No moving parts to wear
    • No maintenance
    • No downtime

Inline Venturi Vacuum Pumps

Unlike standard venturi vacuum pumps where the vacuum port is 90° from the supply port, Vaccon’s inline venturi vacuum pumps feature an air-supply port and vacuum port on the same axis to consolidate space.

VPI Series – Inline Venturi Vacuum Pump

Vaccon VPI Series – Inline Venturi Vacuum Pump

VPI-90H pumps vertically mount to robotic arms to create single or densely populated arrays of pump/cup combinations to accommodate and lift products of any size, shape, or weight.

  • High performance – powerful vacuum up to 24”Hg [813mbar]
  • Push-to-connect air supply fitting
  • Allows multi-populated boards – dense formations
  • Fast response – installs close to vacuum point
  • Efficient – minimal air consumption
  • Easy to install – compact & lightweight, simple mounting, saves plumbing
  • Safe operation – no electricity needed at the pump
  • Reliable, trouble-free operation:
    • No moving parts to wear
    • No flap valves to stick open
    • No maintenance
    • No downtime
I-MPVG Series – Miniature Plastic Vacuum Generators

Vaccon I-MPVG Series – Miniature Plastic Vacuum Generators

Vaccon’s I-MPVG Series of miniature plastic vacuum generators are economical, compact, lightweight, and offer high performance up to 27.0”Hg [918mbar]. These inline venturi pumps are the same size as the air supply and vacuum lines allowing installation in the tightest spaces and closest to the point of use for fast response time.

  • Lightweight and compact for easy point-of-use installation
  • Integrated mounting holes
  • Built-in silencers
  • Push-to-connect fittings [6mm] speed installation
  • Fast response – installs close to vacuum point
  • Efficient – minimal air consumption
  • Safe operation – no electricity needed at the pump
  • Reliable – operates trouble-free:
    • No moving parts to wear or clog
    • No flap valves to stick open
    • No maintenance
    • No downtime
VPIA-60H-DEL Series – Inline Venturi Vacuum Pump with Atmospheric Release

Vaccon VPIA-60H-DEL Series – Inline Venturi Vacuum Pump with Atmospheric Release

Vaccon’s VPIA Series of inline venturi vacuum pumps feature a fast acting, quick release for pick & place applications. Ideal for handling round, oval delicate or fragile objects, VPIA pumps go from vacuum to atmosphere with an instant release, not a slow bleed, for faster operations. Made of FDA approved white Acetal, the VPIA vacuum pumps are safe for food processing, medical and pharmaceutical applications. VPIA pumps operate at 45 PSI.

  • All pneumatic – no electricity required
  • FDA approved Acetal
  • Quick release without hard blow-off
  • Safe handling of fragile objects
  • Integral vacuum fitting
  • Quiet operation
  • Compact & lightweight
  • Efficient – minimal air consumption
  • Powerful vacuum up to 25”Hg [846mbar]
  • Low operating pressure – 45 PSI [3.0 bar]

Variable Vacuum / Variable Flow Pumps

VDF Series Variable Vacuum / Variable Flow Venturi Vacuum Pumps

Vaccon VDF Series Variable Vacuum / Variable Flow Venturi Vacuum Pumps

Extremely Dirt Tolerant Vacuum Pumps

The VDF Series is a unique Vaccon innovation that places the vacuum port and exhaust path inline making a straight-through venturi vacuum pump. These compact pumps offer high flow rates up to 120 SCFM [3400 LPM] and high vacuum levels up to 25”Hg [847mbar]. Developed for extremely dirty and dusty environments such as foundries, refractory and bagging operations, VDF pumps don’t clog, lose suction or require a vacuum filter.

  • Adjustable vacuum level or flow rate:
    • Powerful vacuum up to 25”Hg [847mbar]
    • High flow rates up to 120 SCFM [3398 LPM]
  • Energy efficient – customer controlled – high performance to air consumption ratio
  • Safe operation:
    • No electricity needed at the pump
    • No heat generated
  • Reliable, trouble-free operation:
    • Straight-through design, non-clogging
    • No moving parts to wear
    • No flap valves to stick open
    • No maintenance
    • No downtime

For more information about these products…
 Download a Catalog
